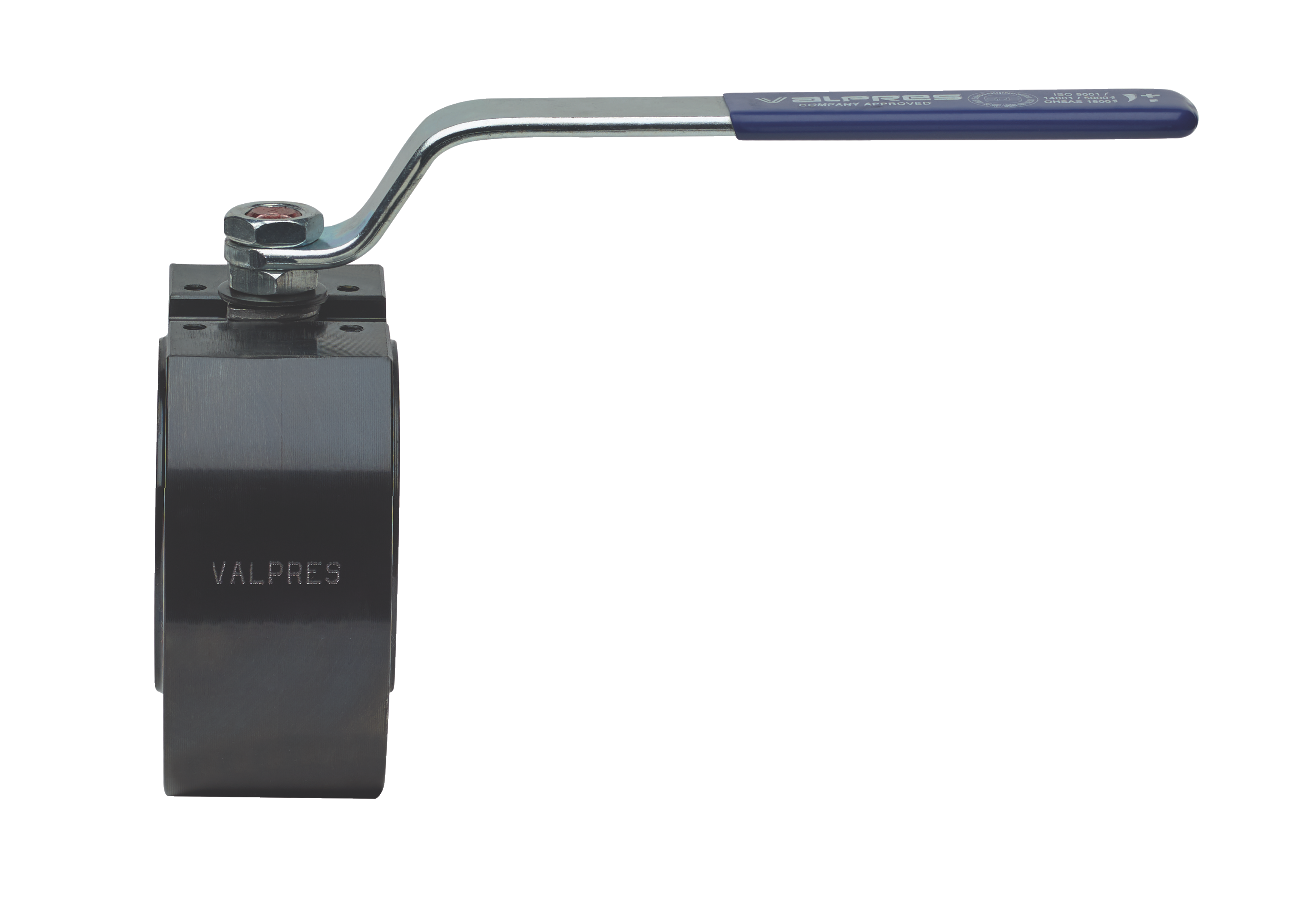

Carbon steel ANSI class 150 flanged ball valve, full port.
• Temperature range -4°F to +366°F.
• Blow-out proof stem.
• RPTFE seats, packing and thrust washer.
• Space saving design.
• 100% tested.
• TUV T.A. Luft approved.
• ANSI B16.34 design.
• ISO 5211 mounting pad with double “D” stem.
• Locking handles available.
720017: size 1/2” to 6”.
720791: STEAM SERVICE TRIM - size 1" to 4”.
COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.

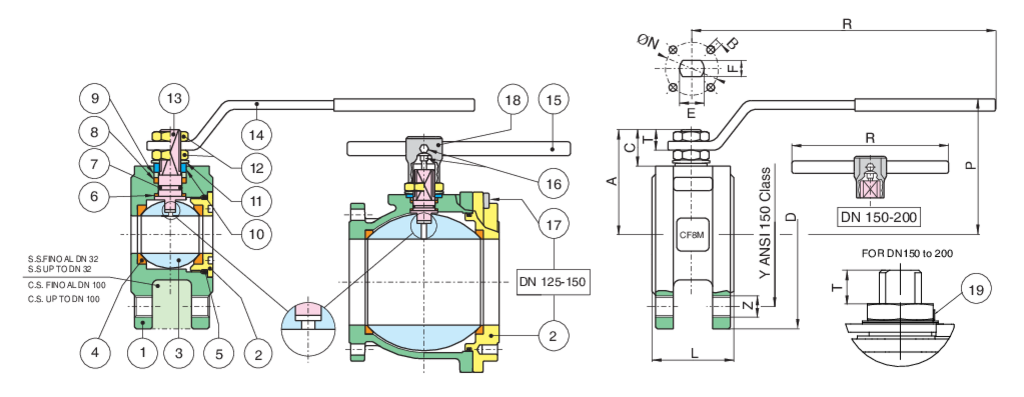

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | ASTM A105/WCB | 1 |
| 2 | END CONNECTION | ASTM A105/WCB | 1 |
| 3 | BALL | A351-CF8 | 1 |
| 4 | BALL SEAT | RPTFE | 2 |
| 5 | O-RING | FKM (Viton) | 1 |
| 6 | THRUST WASHER | PTFE | 1 |
| 7 | RING | FKM (Viton) | 1 |
| 8 | STEM SEAL | PTFE | 1 |
| 9 | PACKING GLAND | STEEL | 1 |
| 10 | END STOP | STEEL | 2-1 |
| 11 | SPRING WASHER | STEEL | 2 |
| 12 | NUT | STEEL | 2 |
| 13 | STEM | AISI 304 | 1 |
| 14 | HANDLE | STEEL | 1 |
| 15 | HANDLE (DN150-200) | STEEL | 1 |
| 16 | SCREW | STEEL | 2 |
| 17 | SCREW | STEEL | 8-12 |
| 18 | BODY HANDLE (DN150-200) | CAST IRON | 1 |
| 19 | Unscrewing grower | A182-F316 | 1 |
| SIZE | D | Y | Z UNC | L | R | P | A | C | T | E | F | ISO 5211 ØN | B | Break Torque (in-Lbs) | Cv | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.50 | 2.38 | 4x1/2" | 1.37 | 5.17 | 2.53 | 1.85 | 0.61 | 0.35 | M10 | 0.27 | 1.26 | 4xM5 | 35 | 22.21 | 2.86 |
| 3/4" | 3.88 | 2.75 | 4x1/2" | 1.57 | 5.17 | 2.71 | 2.02 | 0.61 | 0.35 | M10 | 0.27 | 1.26 | 4xM5 | 115 | 40.50 | 3.96 |
| 1" | 4.25 | 3.12 | 4x1/2" | 1.81 | 6.87 | 3.16 | 2.40 | 0.76 | 0.45 | M12 | 0.31 | 1.65 (F04) | 4xM5 | 124 | 74.63 | 5.95 |
| 1 1/4" | 4.62 | 3.50 | 4x1/2" | 2.12 | 6.87 | 3.32 | 2.53 | 0.64 | 0.45 | M12 | 0.31 | 1.65 (F04) | 4xM5 | 150 | 120.10 | 9.47 |
| 1 1/2" | 5.00 | 3.88 | 4x1/2" | 2.50 | 9.86 | 4.03 | 3.07 | 0.96 | 0.51 | M16 | 0.39 | 1.97 (F05) | 4xM6 | 195 | 201.32 | 11.31 |
| 2" | 6.00 | 4.75 | 4x5/8" | 3.22 | 9.86 | 4.37 | 3.42 | 0.98 | 0.53 | M16 | 0.39 | 1.97 (F05) | 4xM6 | 292 | 348.60 | 19.18 |
| 2 1/2" | 7.00 | 5.50 | 4x5/8" | 4.05 | 12.65 | 5.03 | 4.11 | 1.10 | 0.70 | M20 | 0.55 | 2.76 (F07) | 4xM8 | 540 | 631.37 | 34.17 |
| 3" | 7.50 | 6.00 | 4x5/8" | 4.80 | 12.65 | 5.45 | 4.52 | 1.12 | 0.70 | M20 | 0.55 | 2.76 (F07) | 4xM8 | 637 | 1009.48 | 45.85 |
| 4" | 9.00 | 7.50 | 8x5/8" | 5.98 | 15.01 | 6.16 | 5.39 | 1.35 | 0.86 | M24 | 0.70 | 4.02 (F10) | 4xM10 | 956 | 1577.34 | 75.39 |
| 5" | 10.00 | 8.50 | 8x3/4" | 7.71 | 15.01 | 7.02 | 6.25 | 1.33 | 0.86 | M24 | 0.70 | 4.02 (F10) | 4xM10 | 1018 | 2730.87 | 115.74 |
| 6" | 11.00 | 9.50 | 8x3/4" | 9.13 | 27.55 | 9.33 | 7.93 | 2.02 | 1.18 | M42 | 1.18 | 4.92 (F12) | 4xM12 | 2903 | 4247.46 | 135.50 |
