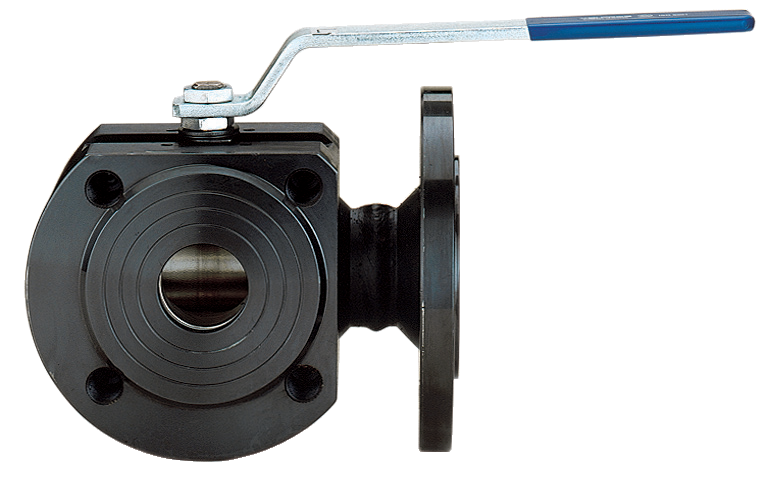

Compact design, carbon steel, ANSI class 150 flanged 3-way ball valve, stainless steel ball and stem.
• 3-way, diverter, two seats, "L" reduced port.
• Temperature range -4°F to +366°F.
• Blow-out proof stem.
• RPTFE seats, packing and thrust washer.
• 100% tested.
• TUV T.A. Luft approved.
• ISO 5211 mounting pad with double “D” stem.
776032: sizes 1/2” to 6”.

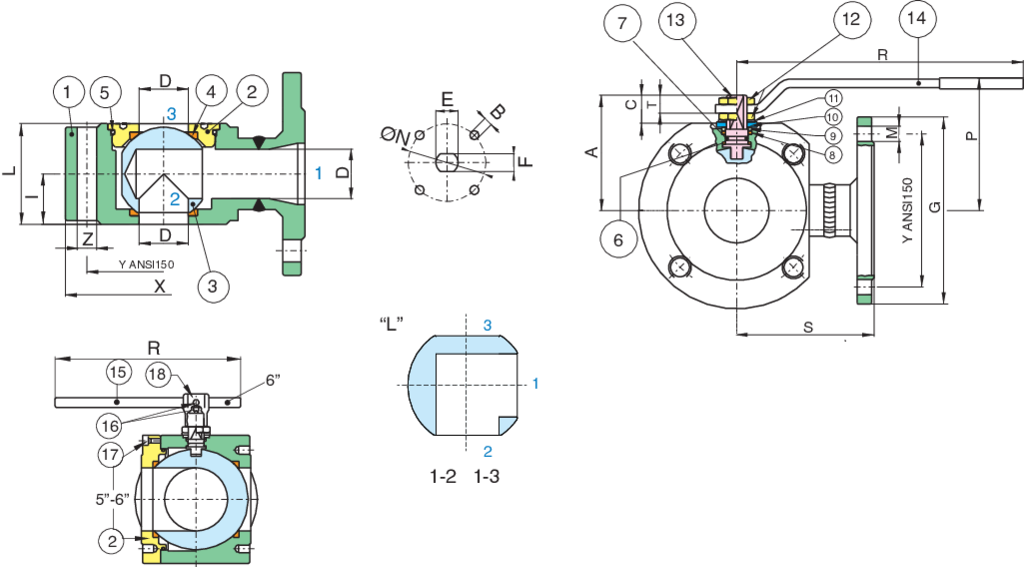

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | ASTM-A105 | 1 |
| 2 | END CONNECTION | ASTM-A105 | 1 |
| 3 | BALL | AISI 304 | 1 |
| 4 | BALL SEATS | RPTFE | 2 |
| 5 | O-RING | FKM (Viton) | 1 |
| 6 | THRUST WASHER | PTFE | 1 |
| 7 | O-RING | FKM (Viton) | 1 |
| 8 | STEM SEAL | PTFE | 1 |
| 9 | PACKING GLAND | STEEL | 1 |
| 10 | END STOP | STEEL (1/2"-2”) | 2 |
| 10 | END STOP | STEEL (2 1/2”-6”) | 1 |
| 11 | SPRING WASHER | STEEL | 2 |
| 12 | NUT | STEEL | 2 |
| 13 | STEM | AISI 304 | 1 |
| 14 | HANDLE | STEEL | 1 |
| 15 | HANDLE (DN150) | CARBON STEEL | 1 |
| 16 | SCREW | CARBON STEEL | 1 |
| 17 | SCREW | CARBON STEEL | 8 |
| 18 | BODY HANDLE | EN-GJL250 | 1 |
| SIZE | X | Y | Z UNC | I | L | R | P | A | C | T | G | M | D | S | E | F | ISO 5211 ØN | B | Break Torque (in-Lbs) | CV | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.50 | 2.38 | 4x1/2" | 0.78 | 1.57 | 5.17 | 2.54 | 1.85 | 0.61 | 0.35 | 3.50 | 4xØ0.62 | 0.39 | 2.99 | 0.39 | 0.27 | 1.26 | 4xM5 | 35 | 3.20 | 4.91 |
| 3/4" | 3.88 | 2.75 | 4x1/2" | 0.78 | 1.57 | 5.17 | 2.71 | 1.95 | 0.53 | 0.35 | 3.88 | 4xØ0.62 | 0.59 | 3.23 | 0.39 | 0.27 | 1.26 | 4xM5 | 115 | 6.00 | 6.30 |
| 1" | 4.25 | 3.12 | 4x1/2" | 0.90 | 1.81 | 6.87 | 3.17 | 2.32 | 0.70 | 0.49 | 4.25 | 4xØ0.62 | 0.78 | 3.38 | 0.47 | 0.31 | 1.65-F04 | 4xM5 | 124 | 10.60 | 8.57 |
| 1 1/4" | 4.62 | 3.50 | 4x1/2" | 1.14 | 2.28 | 6.87 | 3.33 | 2.52 | 0.61 | 0.45 | 4.62 | 4xØ0.62 | 0.98 | 3.93 | 0.47 | 0.31 | 1.65-F04 | 4xM5 | 150 | 16.60 | 13.69 |
| 1 1/2" | 5.00 | 3.88 | 4x1/2" | 1.39 | 2.79 | 9.86 | 4.03 | 3.07 | 0.96 | 0.51 | 5.00 | 4xØ0.62 | 1.26 | 4.13 | 0.63 | 0.39 | 1.97-F05 | 4xM6 | 195 | 29.90 | 18.73 |
| 2" | 6.00 | 4.75 | 4x5/8" | 1.61 | 3.22 | 9.86 | 4.29 | 3.35 | 0.98 | 0.53 | 6.00 | 4xØ0.75 | 1.57 | 4.52 | 0.63 | 0.39 | 1.97-F05 | 4xM6 | 292 | 46.70 | 27.05 |
| 2 1/2" | 7.00 | 5.50 | 4x5/8" | 2.08 | 4.17 | 12.65 | 4.29 | 4.11 | 1.10 | 0.71 | 7.00 | 4xØ0.75 | 1.97 | 4.92 | 0.78 | 0.55 | 2.76-F07 | 4xM8 | 540 | 73.10 | 44.10 |
| 3" | 7.50 | 6.00 | 4x5/8" | 2.40 | 4.80 | 12.65 | 5.37 | 4.45 | 1.10 | 0.71 | 7.50 | 4xØ0.75 | 2.52 | 5.90 | 0.78 | 0.55 | 2.76-F07 | 4xM8 | 637 | 133.90 | 53.66 |
| 4" | 9.00 | 7.50 | 8x5/8" | 2.99 | 5.98 | 15.01 | 6.12 | 5.35 | 1.36 | 0.86 | 9.00 | 8xØ0.75 | 2.99 | 6.26 | 0.94 | 0.70 | 4.02-F10 | 4xM10 | 956 | 188.70 | 84.76 |
| 5" | 9.84 | 8.50 | 8x3/4" | 3.85 | 7.70 | 15.02 | 7.01 | 6.25 | 1.36 | 0.86 | 10.03 | 8xØ0.86 | 3.93 | 7.48 | 0.94 | 0.72 | 4.92-F12 | 4xM10 | 1018 | 326.70 | 140.00 |
| 6"* | 11.08 | 9.50 | 8x3/4" | 4.56 | 9.13 | 27.60 | 9.92 | 7.90 | 1.92 | 1.18 | 11.02 | 8xØ0.86 | 4.90 | 8.26 | 1.65 | 1.18 | 4.92-F12 | 4xM12 | 2903 | 510.50 | 220.00 |
* For automation please consult factory.
