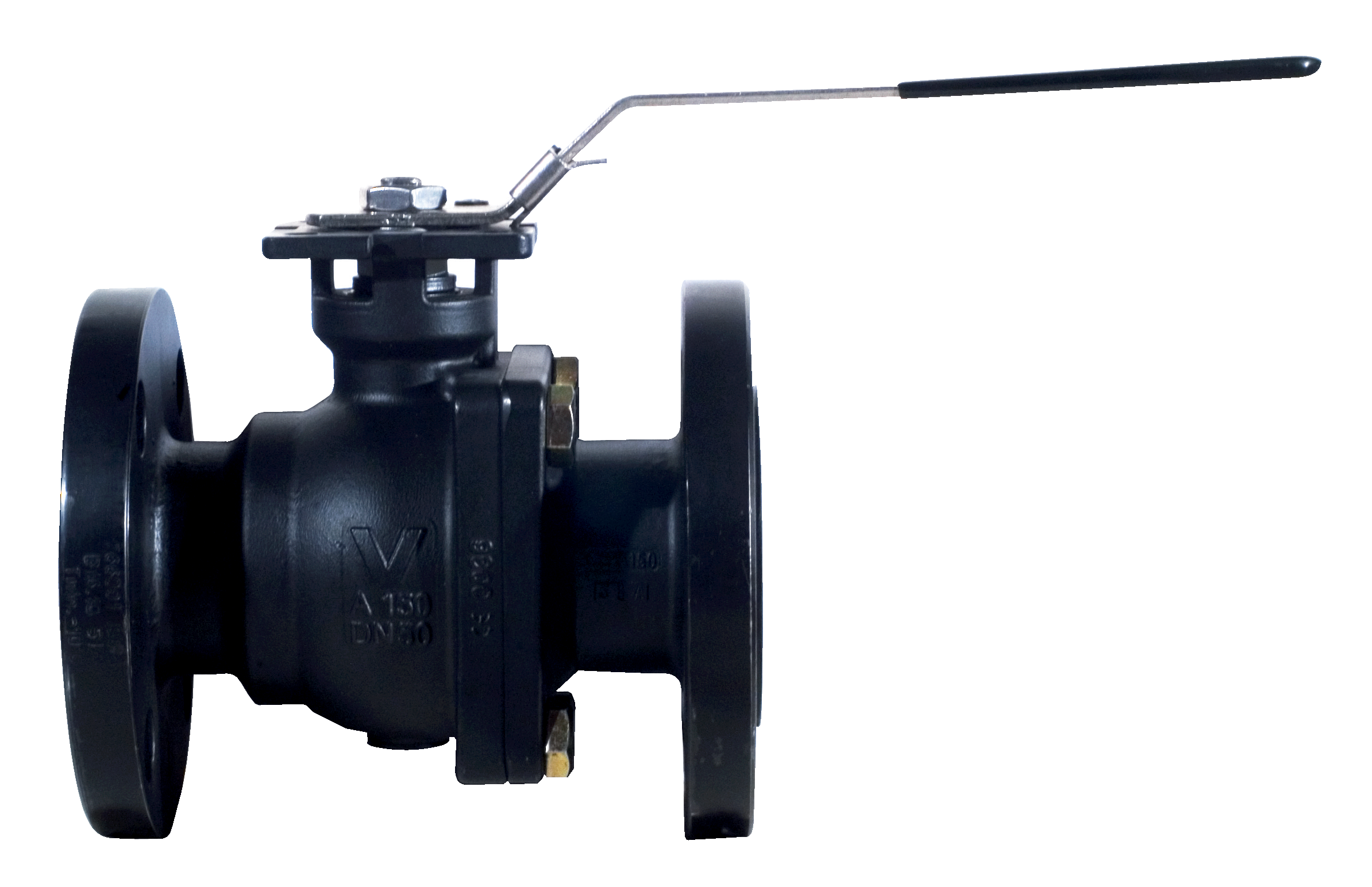

Carbon steel, ANSI class 150 flanged ball valve, full port, with locking handle.
• Direct mount ISO 5211/square stem.
• Temperature range -4°F to +366°F.
• Blow-out proof stem, adjustable stem packing.
• PTFE seats, and FKM Viton O-rings.
• Fire Safe certified to API 607.
• 100% tested.
• ANSI B16.5, B16.10, B16.34 design.
• Antistatic Device.
• Standard locking handle.
766001: size 1” to 4”.
COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.

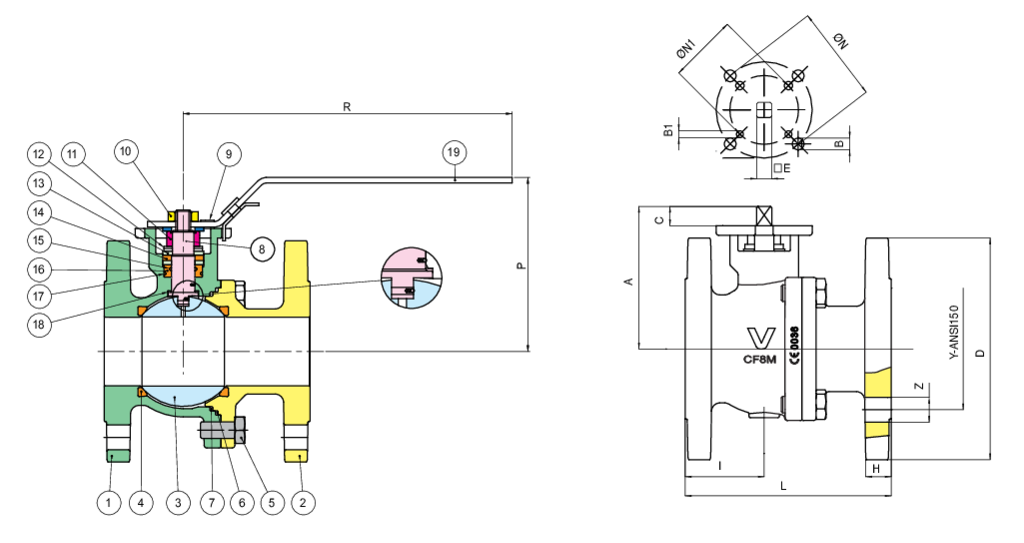

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | A352/LCB | 1 |
| 2 | END CONNECTION | A352/LCB | 1 |
| 3 | BALL | A479-304/A351-CF8 | 1 |
| 4 | BALL SEAT | PTFE | 2 |
| 5 | SCREW | CARBON STEEL | 4-8 |
| 6 | BODY SEAL | GRAPHOIL | 1 |
| 7 | BODY SEAL | PTFE | 1 |
| 8 | STEM | A479-304 | 1 |
| 9 | SCREW | CARBON STEEL | 1 |
| 10 | NUT | CARBON STEEL | 1 |
| 11 | NUT | CARBON STEEL | 1 |
| 12 | SPRING WASHER | CARBON STEEL | 2 |
| 13 | BUSH | A479-316 | 2 |
| 14 | STEM SEAL | GRAPHOIL | 1 |
| 15 | O-RING | FKM (Viton) | 1 |
| 16 | STEM SEAL | PTFE | 1 |
| 17 | O-RING | FKM (Viton) | 1 |
| 18 | THRUST WASHER | PTFE | 1 |
| 19 | HANDLE | STAINLESS STEEL | 1 |
| SIZE | D | Y | Z | H | I | L | P | R | A | C | E mm | ØN | B | ISO 5211 | B1 | Break Torque (in-Lbs) | Cv | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1" | 4.33 | 3.13 | 4xØ0.63 | 0.57 | 2.13 | 5.00 | 3.66 | 6.30 | 2.72 | 0.43 | 9 | 1.97 (F05) | 0.28 | - | - | 124 | 74.63 | 8.38 |
| 1 1/2" | 5.12 | 3.88 | 4xØ0.63 | 0.69 | 2.99 | 6.50 | 4.65 | 9.45 | 3.70 | 0.55 | 11 | 2.76 (F07) | 0.33 | 1.97 (F05) | M6 | 195 | 201.32 | 15.43 |
| 2" | 5.91 | 4.04 | 4xØ0.75 | 0.77 | 3.33 | 7.01 | 5.00 | 9.45 | 4.06 | 0.53 | 11 | 2.76 (F07) | 0.33 | 1.97 (F05) | M6 | 292 | 348.60 | 21.16 |
| 2 1/2” | 7.08 | 5.50 | 4xØ0.75 | 0.91 | 2.95 | 7.48 | 6.06 | 12.60 | 5.06 | 0.69 | 14 | 2.76 (F07) | 0.33 | 2.76 (F07) | M6 | 465 | 630.82 | 33.95 |
| 3" | 7.48 | 6.00 | 4xØ0.75 | 0.94 | 3.66 | 7.99 | 6.38 | 12.60 | 5.41 | 0.69 | 14 | 4.02 (F10) | 0.43 | 2.76 (F07) | M10 | 637 | 1009.48 | 39.45 |
| 4" | 9.06 | 7.50 | 8xØ0.75 | 0.94 | 3.92 | 9.02 | 6.97 | 14.96 | 6.04 | 0.75 | 17 | 4.02 (F10) | 0.43 | 2.76 (F07) | M10 | 956 | 1577.34 | 53.56 |
