Stainless steel, ANSI class 150 flanged ends ball valve, full port.
• Blow-out proof stem, adjustable stem packing.
• PTFE seats, packing and thrust washer.
• Standard grounded stem and ball.
• 100% tested.
• PED 97/23/CE.
• Locking handle plate.
• Temperature range -4°F to +366°F.
• ANSI B16.5, B16.10, B16.34 design.
• Fire Safe API 6FA-API 607.
• Antistatic Device.
• ISO 5211 mounting pad and double “D” stem.
• Fugitive emissions tested to ISO 15848-1.
760005: sizes 1/2” to 12” (10” and 12” TRUNNION).
760021: STEAM SERVICE TRIM - sizes 1/2” to 8”.
760V05: V-PACK AVAILABLE - sizes 1/2” to 8”.
COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.

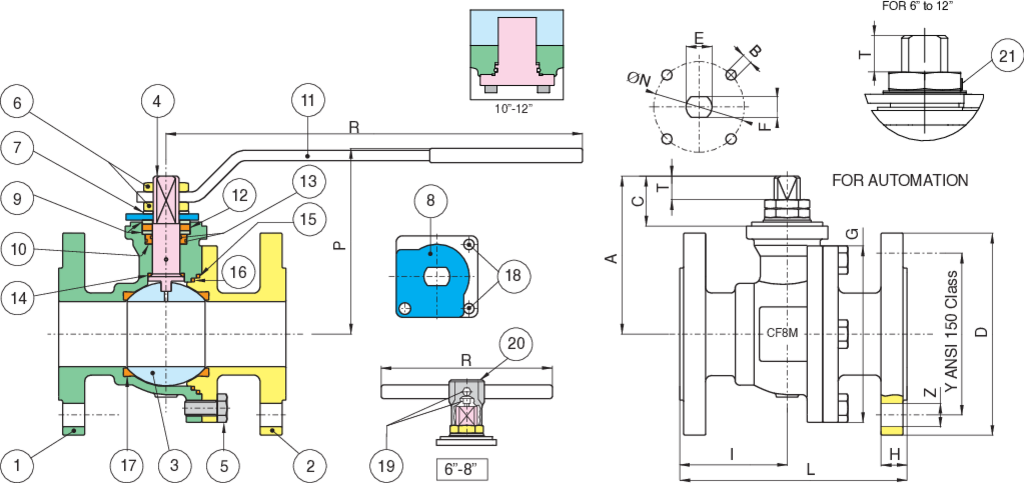

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | A351-CF8M | 1 |
| 2 | END CONNECTION | A351-CF8M | 1 |
| 3 | BALL | A479-316/A351-CF8M | 1 |
| 4 | STEM | A479-316 | 1 |
| 5 | SCREW | STAINLESS STEEL | 4-8-12 |
| 6 | NUT | STAINLESS STEEL | 1-2 |
| 7 | SPRING WASHER | STAINLESS STEEL | 2 |
| 8 | TRAVEL STOP | STAINLESS STEEL | 1 |
| 9 | PACKING GLAND | STAINLESS STEEL | 2 |
| 10 | STEM SEAL | PTFE | 1 |
| 11 | HANDLE | STAINLESS STEEL | 1 |
| 12 | STEM SEAL | GRAPHOIL | 1 |
| 13 | O-RING | FKM (Viton) | 2 |
| 14 | THRUST WASHER | PTFE | 1 |
| 15 | SEAL | GRAPHOIL | 1 |
| 16 | SEAL | PTFE | 1 |
| 17 | BALL SEATS | PTFE | 2 |
| 18 | SCREW | STAINLESS STEEL | 2 |
| 19 | SCREW | STAINLESS STEEL | 2 |
| 20 | BODY HANDLE | CAST IRON | 1 |
| 21 | Unscrewing grower | A182-F316 | 1 |
| SIZE | D | Y | Z | H | I | L | G | P | R | A | C | T | E | F | ISO 5211 ØN | B | Break Torque (in-Lbs) | Cv | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.54 | 2.38 | 4xØ0.63 | 0.45 | 1.83 | 4.25 | 2.80 | 3.46 | 5.16 | 2.05 | 0.75 | 0.31 | M10 | 0.28 | 1.65 (F04) | M5 | 35 | 22.21 | 4.21 |
| 3/4" | 3.94 | 2.76 | 4xØ0.63 | 0.51 | 2.09 | 4.61 | 2.89 | 3.66 | 5.16 | 2.20 | 0.75 | 0.31 | M10 | 0.28 | 1.65 (F04) | M5 | 115 | 40.50 | 5.36 |
| 10"* | 15.94 | 14.25 | 12xØ1.02 | 1.27 | 11.88 | 20.98 | 19.69 | - | - | 13.90 | 3.19 | 1.85 | M52 | 1.50 | 5.51 (F14) | M16 | - | 12924.50 | 429.78 |
| 12"* | 19.09 | 17.00 | 12xØ1.02 | 1.33 | 13.93 | 24.02 | 22.05 | - | - | 15.12 | 3.19 | 1.85 | M52 | 1.50 | 5.51 (F14) | M16 | - | 19444.08 | 559.82 |
| 1" | 4.33 | 3.13 | 4xØ0.63 | 0.57 | 2.34 | 5.00 | 3.56 | 3.50 | 6.85 | 2.85 | 1.08 | 0.51 | M12 | 0.31 | 1.97 (F05) | M6 | 124 | 74.63 | 8.15 |
| 1 1/2" | 5.12 | 3.88 | 4xØ0.63 | 0.69 | 3.03 | 6.50 | 4.49 | 5.24 | 9.84 | 4.17 | 1.18 | 0.39 | M16 | 0.39 | 1.97 (F05) | M6 | 195 | 201.32 | 15.65 |
| 2" | 5.91 | 4.74 | 4xØ0.75 | 0.77 | 3.39 | 7.01 | 5.37 | 5.67 | 12.64 | 4.80 | 1.52 | 0.71 | M20 | 0.55 | 2.76 (F07) | M8 | 292 | 348.60 | 23.80 |
| 3" | 7.48 | 6.00 | 4xØ0.75 | 0.94 | 3.13 | 7.99 | 7.03 | 6.81 | 15.00 | 5.94 | 1.69 | 0.71 | M24 | 0.71 | 4.02 (F10) | M10 | 637 | 1009.48 | 47.61 |
| 4" | 9.06 | 7.50 | 8xØ0.75 | 0.94 | 4.33 | 9.02 | 8.21 | 7.36 | 15.00 | 6.50 | 1.69 | 0.71 | M24 | 0.71 | 4.02 (F10) | M10 | 956 | 1577.34 | 67.00 |
| 6" | 11.02 | 9.51 | 8xØ0.87 | 1.00 | 7.13 | 15.51 | 12.24 | 12.01 | 27.56 | 9.65 | 2.68 | 1.61 | M42 | 1.18 | 4.92 (F12) | M12 | 2903 | 4247.46 | 171.91 |
| 8" | 13.58 | 11.75 | 8xØ0.87 | 1.14 | 8.35 | 17.99 | 15.83 | 13.70 | 27.56 | 11.34 | 2.68 | 1.61 | M42 | 1.18 | 4.92 (F12) | M12 | 5824 | 7886.81 | - |
* TRUNNION supplied without handle.
