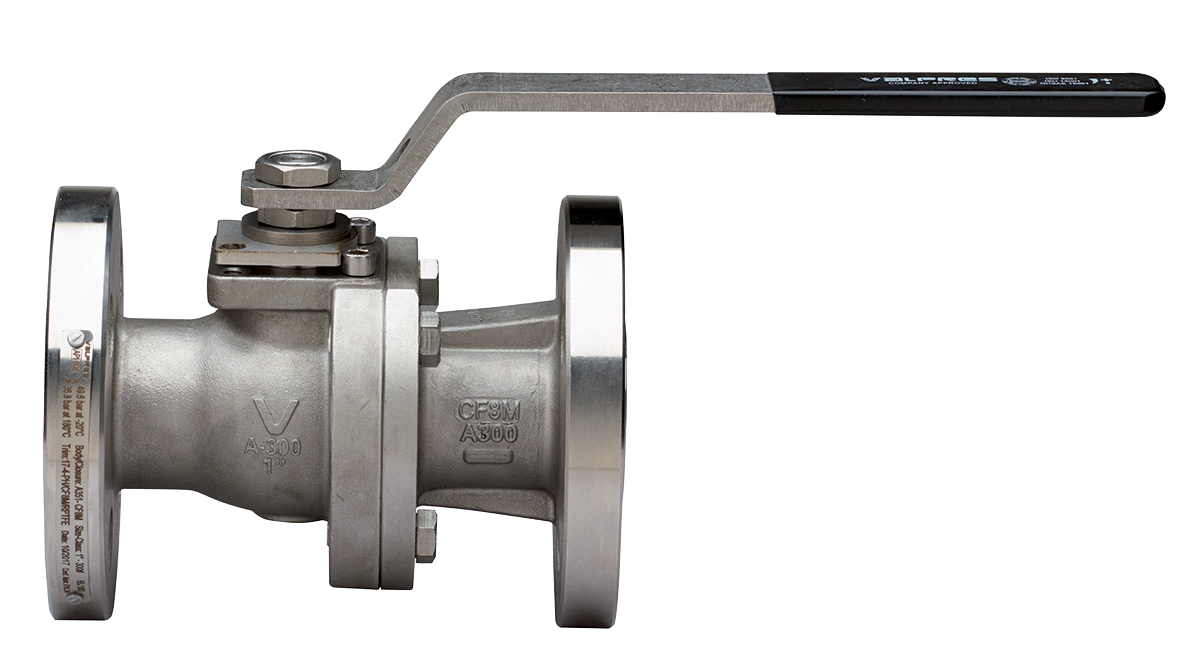

Stainless steel, ANSI class 300, flanged ball valve, full port.
• API 608, ASME B16.34, ASME B16.10, ASME B16.5, ASME B1.1 design.
• Temperature range -4°F to +366°F.
• 100% tested according to API 598 standards.
• RPTFE seats, packing and thrust washer.
• Blow-out proof stem, locking handle.
• Fire Safe API 607.
• Antistatic Device.
• ISO 5211 mounting pad with double “D” stem.
• Locking device.
68J100: sizes 1/2” to 6”.
COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.
Vacuum: 10-3 torr.
| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | A351-CF8M | 1 |
| 2 | END CONNECTION | A351-CF8M | 1 |
| 3 | BALL | A479-Tp316 | 1 |
| 4 | STEM | A564 Tp630 H115OD (17-4-PH) | 1 |
| 5 | SCREW | A193 B8 CI.2 | 4-6-8-12 |
| 6 | NUT | STAINLESS STEEL | 2 |
| 7 | SPRING WASHER | A182-F304 | 2 |
| 8 | 90° STOP | AISI 316 | 1 |
| 9 | BUSH | A479-Tp316L | 1 |
| 10 | O-RING | FKM (Viton) | 1 |
| 11 | HANDLE | AISI 316 | 1 |
| 12 | STEM SEAL | GRAPHITE | 1 |
| 13 | O-RING | FKM (Viton) | 1 |
| 14 | THRUST WASHER | RPTFE | 1 |
| 15 | O-RING BUSH | A479-Tp316L | 1 |
| 16 | BODY SEAT | GRAPHITE | 1 |
| 17 | O-RING | FKM (Viton) | 2 |
| 18 | BALL SEAT | RPTFE | 2 |
| 19 | SCREW | A2-70 | 1 |
| SIZE | D | Y | Z | H | I | L | G | P | R | A | C | T | E | F | ISO 5211 ØN | B | Break Torque (in-Lbs) | Cv | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.54 | 2.63 | 4xØ0.63 | 0.58 | 2.47 | 5.51 | 3.23 | 3.74 | 6.85 | 2.13 | 0.85 | 0.27 | M12 | 8 | 1.65 (F04) | M5 | 110.63 | 16.59 | 6.84 |
| 3/4" | 3.94 | 3.25 | 4xØ0.75 | 0.64 | 2.64 | 5.98 | 3.54 | 3.90 | 6.85 | 2.28 | 0.83 | 0.27 | M12 | 8 | 1.65 (F04) | M5 | 168.15 | 30.25 | 9.92 |
| 1" | 4.33 | 3.50 | 4xØ0.75 | 0.70 | 2.78 | 6.50 | 4.13 | 3.94 | 9.84 | 2.94 | 1.14 | 0.37 | M16 | 10 | 1.96 (F05) | M6 | 247.80 | 55.75 | 14.11 |
| 1 1/2" | 4.92 | 4.50 | 4xØ0.86 | 0.83 | 4.09 | 7.48 | 5.04 | 4.84 | 12.64 | 3.90 | 1.40 | 0.61 | M20 | 14 | 1.96 (F05) | M6 | 429.23 | 150.39 | 25.58 |
| 2" | 5.91 | 5.00 | 8xØ0.75 | 0.91 | 3.54 | 8.50 | 5.51 | 5.24 | 12.64 | 4.29 | 1.44 | 0.65 | M20 | 14 | 1.96 (F05) | M6 | 601.80 | 260.41 | 31.75 |
| 3" | 7.48 | 6.63 | 8xØ0.86 | 1.14 | 4.80 | 11.10 | 7.40 | 6.57 | 15.00 | 5.91 | 1.75 | 0.81 | M24 | 18 | 2.75 (F07) | M8 | 1389.45 | 754.11 | 70.56 |
| 4" | 9.06 | 7.87 | 8xØ0.86 | 1.27 | 5.04 | 12.01 | 9.25 | 7.32 | 24.02 | 6.57 | 1.67 | 0.73 | M24 | 18 | 4.01 (F10) | M10 | 3309.90 | 1178.31 | 115.54 |
| 6" | 11.02 | 10.63 | 12xØ0.86 | 1.46 | 7.89 | 15.87 | 12.68 | - | - | 9.65 | 2.68 | 1.48 | M42 | 30 | 4.92 (F12) | M12 | 8673.00 | 3172.95 | 240.35 |
