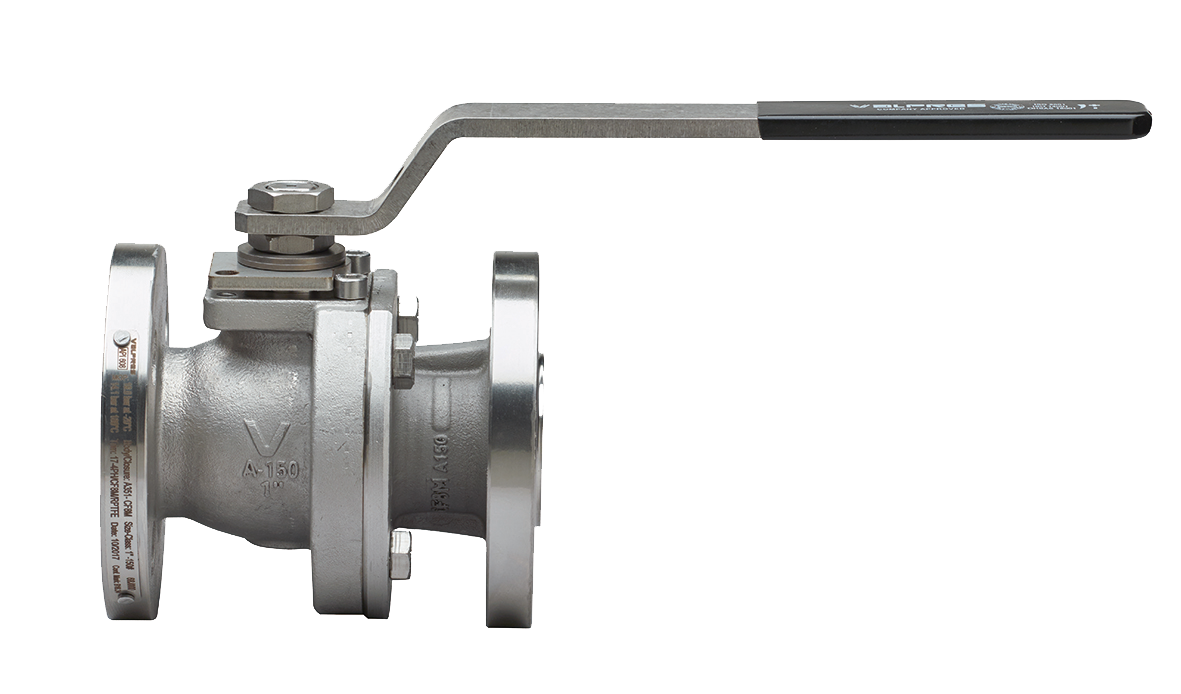

Stainless steel, ANSI class 150, flanged ball valve, full port.
• API 608, ASME B16.34, ASME B16.10, ASME B16.5, ASME B1.1 design.
• Temperature range -4°F to +366°F.
• 100% tested according to API 598 standards.
• RTFE seats, packing and thrust washer.
• Blow-out proof stem, locking handle.
• Fire Safe API 607.
• Antistatic Device.
• ISO 5211 mounting pad with double “D” stem.
• Locking device.
68J000: sizes 1/2” to 6”.
Vacuum: 10-3 torr.
| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | A351-CF8M | 1 |
| 2 | END CONNECTION | A351-CF8M | 1 |
| 3 | BALL | A479-Tp316 | 1 |
| 4 | STEM | A564 Tp630 H115OD (17-4-PH) | 1 |
| 5 | SCREW | A193 B8 CI.2 | 4-8-12 |
| 6 | NUT | STAINLESS STEEL | 2 |
| 7 | SPRING WASHER | A182-F304 | 2 |
| 8 | 90° STOP | AISI 316 | 1 |
| 9 | BUSH | A479-Tp316L | 1 |
| 10 | O-RING | FKM (Viton) | 1 |
| 11 | HANDLE | AISI 316 | 1 |
| 12 | STEM SEAL | GRAPHITE | 1 |
| 13 | O-RING | FKM (Viton) | 1 |
| 14 | THRUST WASHER | RPTFE | 1 |
| 15 | O-RING BUSH | A479-Tp316L | 1 |
| 16 | BODY SEAT | GRAPHITE | 1 |
| 17 | O-RING | FKM (Viton) | 2 |
| 18 | BALL SEAT | RPTFE | 2 |
| 19 | SCREW | A2-70 | 1 |
| SIZE | D | Y | Z | H | I | L | G | P | R | A | C | T | E | F | ISO 5211 ØN | B | Break Torque (in-Lbs) | Cv | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.54 | 2.37 | 4xØ0.63 | 0.46 | 1.79 | 4.25 | 3.23 | 3.74 | 6.85 | 2.13 | 0.85 | 0.27 | M12 | 8 | 1.65 (F04) | M5 | 66.38 | 16.59 | 5.29 |
| 3/4" | 3.94 | 2.75 | 4xØ0.63 | 0.53 | 1.91 | 4.61 | 3.54 | 3.90 | 6.85 | 2.28 | 0.83 | 0.27 | M12 | 8 | 1.65 (F04) | M5 | 115.05 | 30.25 | 7.28 |
| 1" | 4.33 | 3.13 | 4xØ0.63 | 0.58 | 2.09 | 5.00 | 4.13 | 3.94 | 9.84 | 2.94 | 1.14 | 0.37 | M16 | 10 | 1.96 (F05) | M6 | 168.15 | 55.75 | 10.61 |
| 1 1/2" | 4.92 | 3.87 | 4xØ0.63 | 0.71 | 3.72 | 6.50 | 4.84 | 4.84 | 12.64 | 3.94 | 1.40 | 0.61 | M20 | 14 | 1.96 (F05) | M6 | 327.45 | 150.39 | 19.18 |
| 2" | 5.91 | 4.74 | 4xØ0.75 | 0.77 | 2.99 | 7.01 | 5.51 | 5.24 | 12.64 | 4.27 | 1.44 | 0.65 | M20 | 14 | 1.96 (F05) | M6 | 495.60 | 260.41 | 26.24 |
| 3" | 7.48 | 6.00 | 4xØ0.75 | 0.96 | 3.35 | 7.99 | 7.40 | 6.57 | 15.00 | 5.89 | 1.75 | 0.81 | M24 | 18 | 2.75 (F07) | M8 | 1053.15 | 754.11 | 53.14 |
| 4" | 9.06 | 7.50 | 8xØ0.75 | 0.96 | 3.54 | 9.02 | 9.25 | 7.32 | 15.00 | 6.57 | 1.67 | 0.73 | M24 | 18 | 4.01 (F10) | M10 | 1654.95 | 1178.31 | 84.89 |
| 6" | 11.02 | 9.50 | 8xØ0.87 | 1.02 | 9.49 | 15.51 | 12.40 | - | - | 9.65 | 2.68 | 1.61 | M42 | 30 | 4.92 (F12) | M12 | 4469.25 | 3172.95 | 189.19 |
