INOX-VAL V-BALL

700076 V36-V6-V9

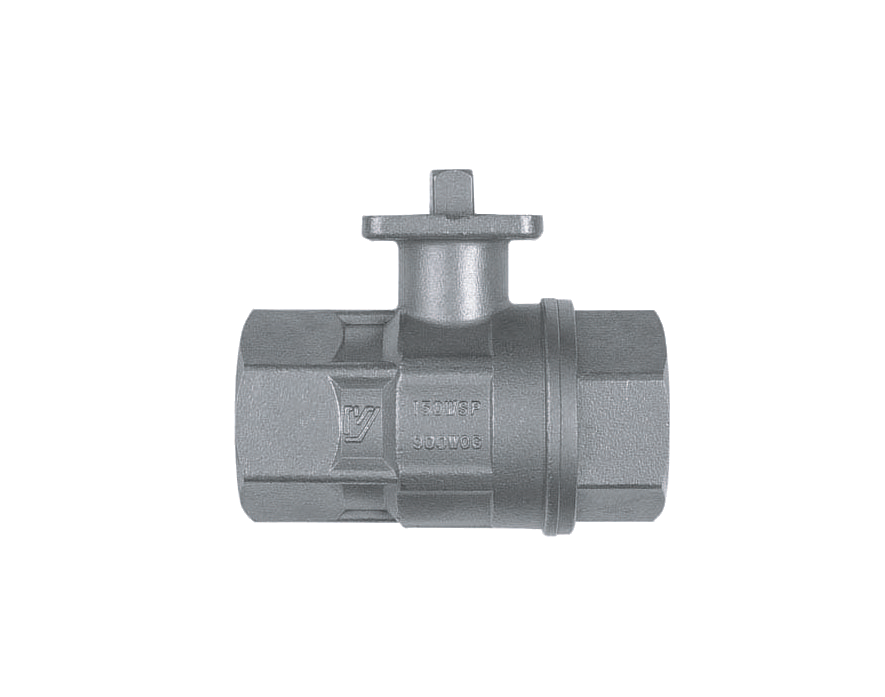

STAINLESS STEEL DIRECT MOUNT BALL VALVE

2-piece stainless steel FNPT threaded, direct mount ball valve, full port.
• Pressure rating 1000 psi, 150 psi steam.
• Temperature -4°F to +366°F.
• Blow-out proof stem.
• 23% carbon and 2% graphite filled PTFE seats.
• Low operating torque.
• Double O-ring stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• ISO 5211 mounting pad.
• ANSI B1.20.1 connections.
700076V36 - 700076V6 - 700076V9: size 1/2” to 3”.

COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.

Technical specifications

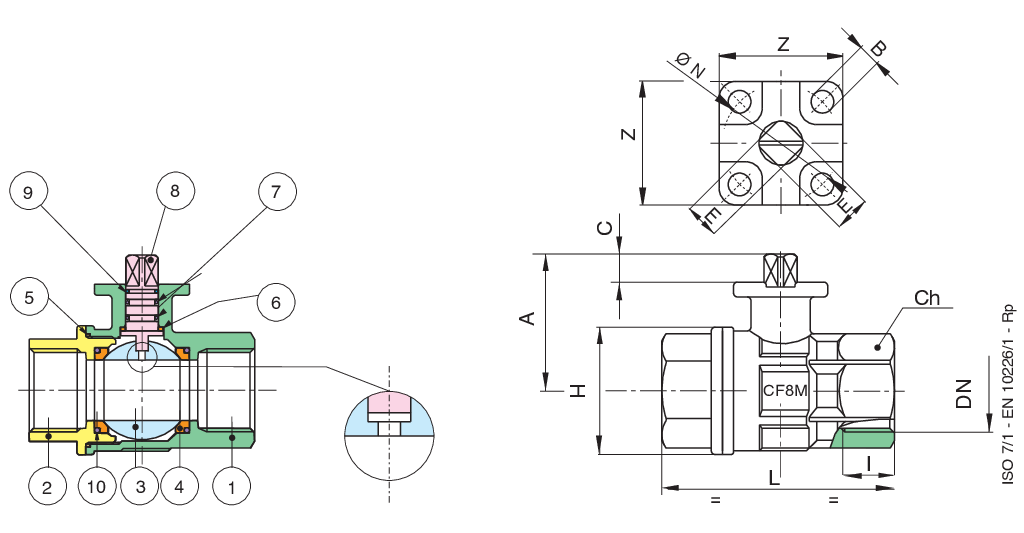

Position	Part name	Material	N.° pieces
1	BODY	CF8M	1
2	END CONNECTION	CF8M	1
3	BALL	A182-F316	1
4	BALL SEAT	23% CARBON + 2% GRAPHITE FILLED PTFE	2
5	BODY SEAT	PTFE	1
6	ANTIFRICTION RING	TFM	1
7	O-RING	FKM (Viton)	2
8	STEM SEAT	Virgin PTFE	1
9	STEM	A182-F316	1

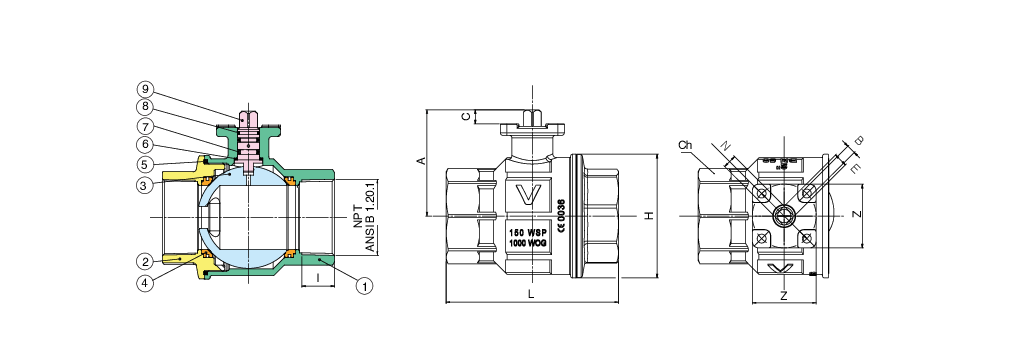

SIZE	I	L	H	Ch	A	C	E mm	ISO 5211	B	Z	Cv	psi	Weight (Lbs)	Break torque (in-Lbs)
1/2"	0.59	2.63	1.35	1.06	1.63	0.35	9	F03	0.23	1.49	22.21	1000	0.68	55
3/4"	0.64	3.07	1.65	1.25	1.71	0.35	9	F03	0.23	1.49	40.50	1000	0.91	55
1"	0.75	3.54	2.02	1.61	2.10	0.35	9	F03	0.23	1.49	74.63	1000	1.35	80
1 1/4"	0.84	3.93	2.53	1.96	2.24	0.35	9	F03	0.23	1.49	120.10	1000	2.22	89
1 1/2"	0.84	4.40	3.03	2.16	2.91	0.43	11	F05	0.27	1.96	201.32	1000	3.69	150
2"	1.01	5.31	3.81	2.75	3.27	0.43	11	F05	0.27	1.96	348.60	1000	6.49	213
2 1/2"	1.22	6.32	4.64	3.39	4.94	0.66	14	F07/F10	0.39/0.47	3.64	631.37	800	16.38	484
3"	1.34	7.01	5.48	4.09	5.34	0.71	14	F07/F10	0.39/0.47	3.64	1009.48	800	22.82	772
