EUROBLOCK

100102

Made in Italy

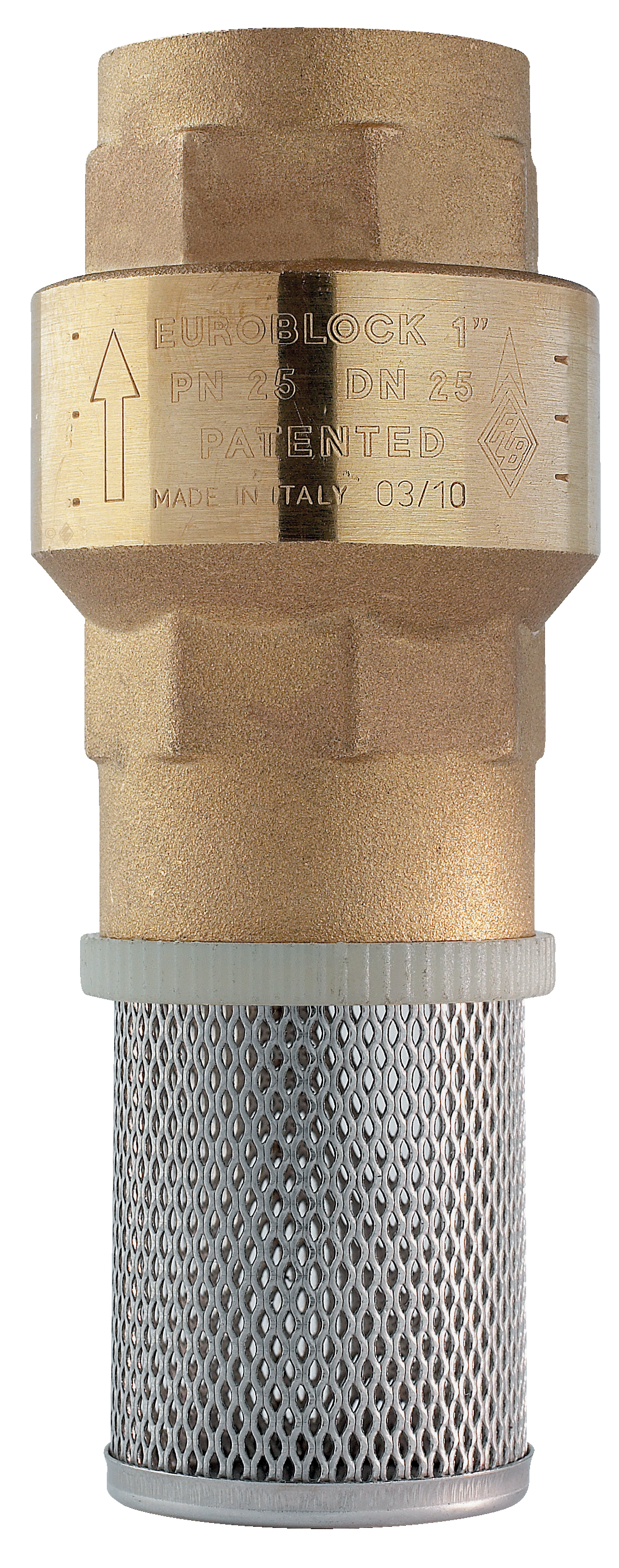

FOOT VALVE

High flow rate, brass FNPT threaded, spring loaded foot valve.
• Pressure rating: sizes 3/8”-2” 400 WOG - 2 1/2”-4” 175 WOG.
• Low cracking pressure 1/2 psi.
• Wide temperature range: -4°F to 210°F.
• ANSI B1.20.1 connections.
• Soft seat for bubble tight shutoff, spring loaded for fast seating action.
• Flow pattern to minimize head loss.
• Perfect sealing both at high and low pressure.
• High technology materials to ensure best resistance in any condition.
• Stainless steel 1000 micron strainer.
• Not to be used for drinking water.
100102: size 3/8” to 4”.

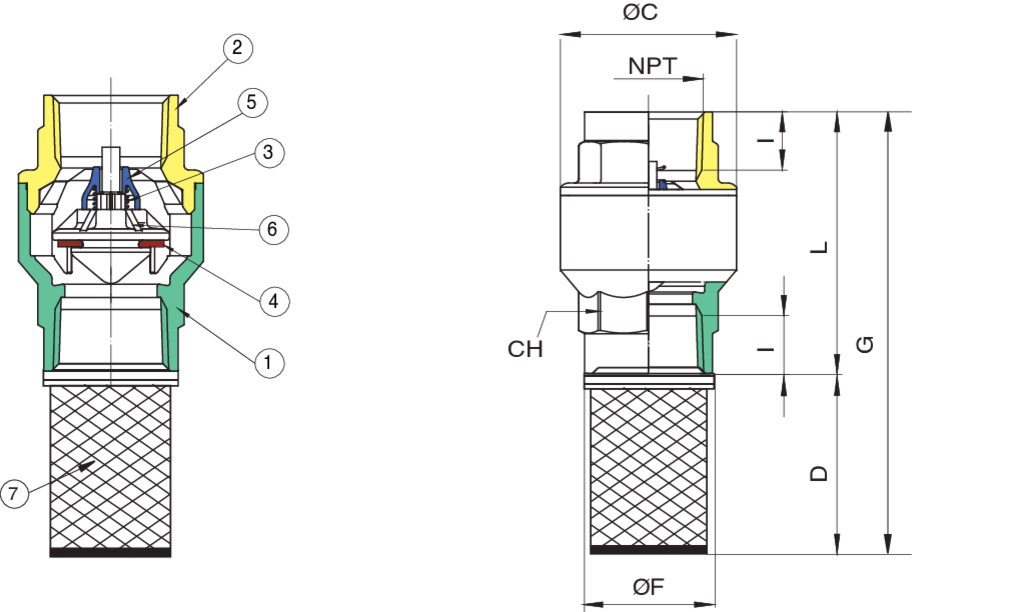

Technical specifications
Position Part name Material N.° pieces
1 BODY BRASS C37700 1
2 END CONNECTION BRASS C37700 1
3 SPRING STAINLESS STEEL 1
4 SEAT NBR 1
5 SUPPORT POM 1
6 DISC POLYPHENYLENE SULFIDE 1
7 SCREEN STAINLESS STEEL NYLON 1000 MICRON 1
SIZE I L ØC D ØF G CH psi Cv Weight ​​​​​​​(Lbs)
3/8" 0.41 1.73 1.06 1.67 0.91 3.41 0.79 400 2.1 0.23
1/2" 0.54 2.32 1.36 1.69 1.02 4.02 0.98 400 9.2 0.33
3/4" 0.55 2.56 1.65 1.89 1.26 4.45 1.22 400 15.1 0.53
1" 0.66 2.76 1.93 1.89 1.61 4.65 1.5 400 22.1 0.78
1 1/4" 0.68 2.93 2.4 2.24 1.93 5.18 1.89 400 34.3 1.32
1 1/2" 0.68 3.17 2.87 2.68 2.17 5.85 2.13 400 51.9 1.71
2" 0.7 3.37 3.46 3.27 2.64 6.63 2.64 400 71.3 2.38
2 1/2" 0.93 4.37 4.39 3.29 3.39 7.66 3.27 175 90.1 4.98
3" 1.02 4.86 5.24 3.9 3.9 8.76 3.86 175 141.7 7.26
4" 1.09 5.41 6.42 4.53 4.8 9.94 5.04 175 220.7 12.25

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
