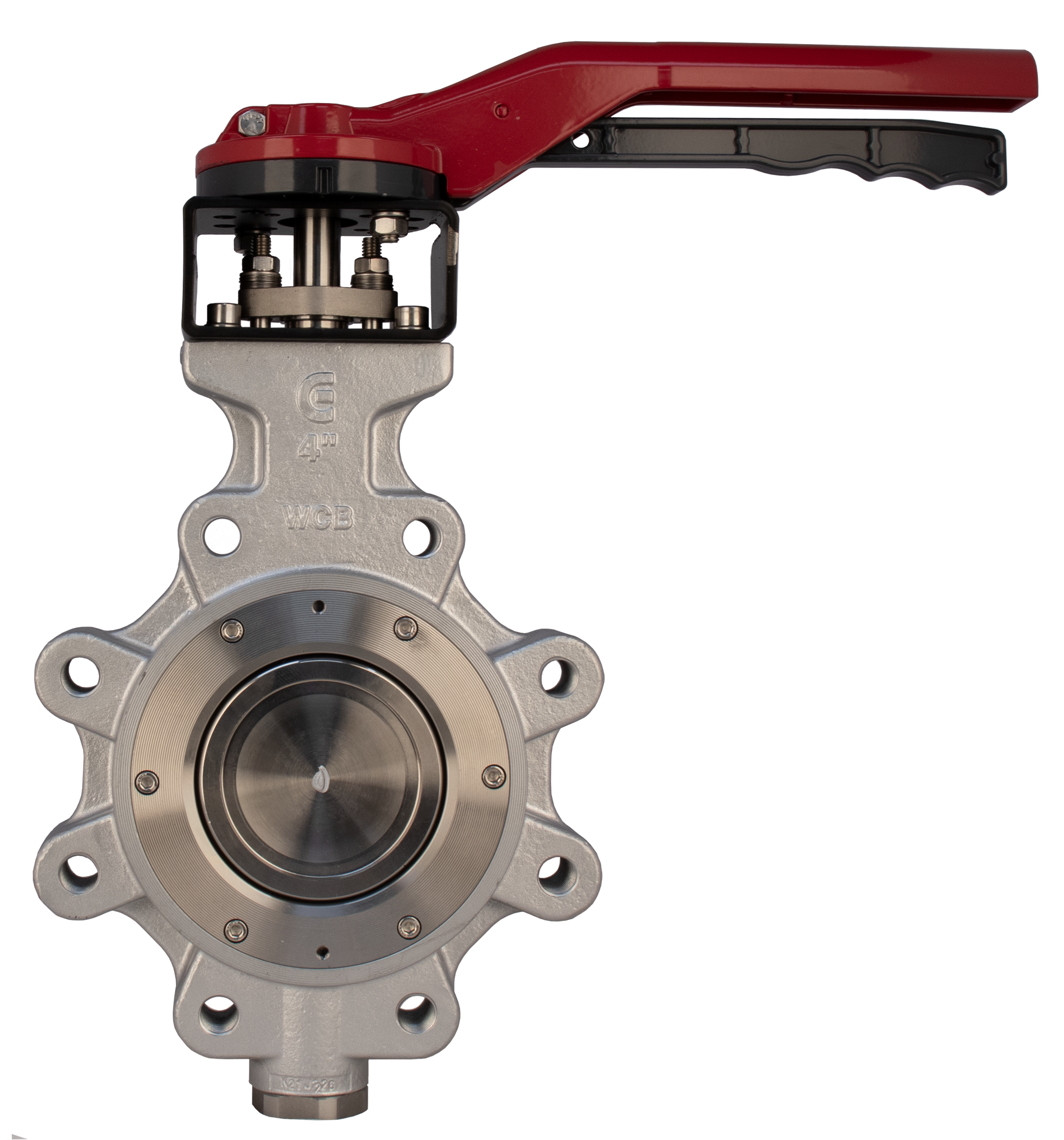

Manually operated ANSI 150 carbon steel, Butterfly valve high performance, Wafer style, sizes 2” to 16”
• ISO 5211 direct mounting pad/square stem.
• Compact design, easy access to packin.
• Replaceable seat design.
• Multiple V-ring stem packing.
• Reliable and consistent torques.
• R.T.F.E. seats (metal seats and API 607 Fire-safe options available upon request).
• 365 psi max working pressure.
• Temperature range: -76°F to 446°F
G8100: GEAR OPERATED VERSION

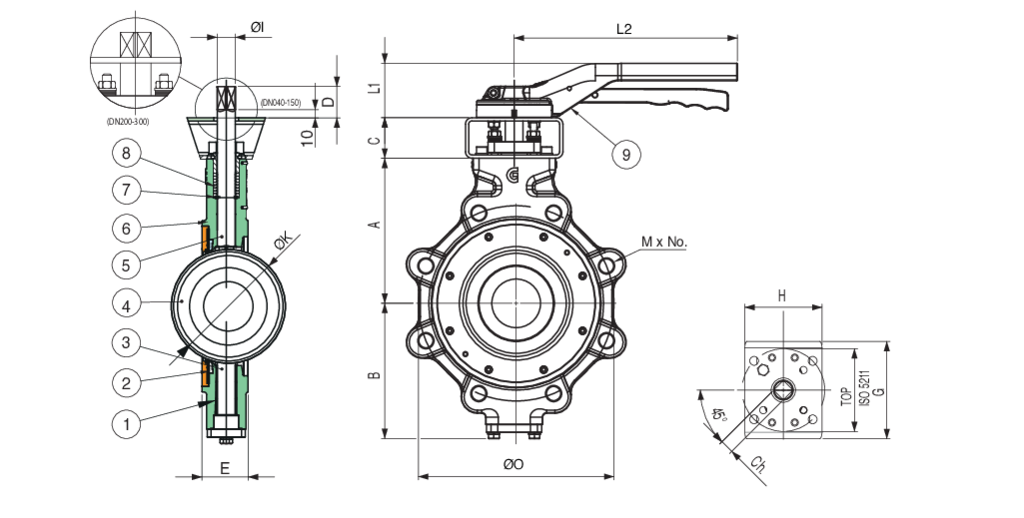

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | ASTM A216 | 1 |
| 2 | SEAT 8100 | RTFE | 1 |
| 2 | SEAT 8120 | INCONEL 625 | 1 |
| 2 | SEAT 8140 | FIRE SAFE | 1 |
| 3 | LOWER SHAFT | A630 | 1 |
| 4 | DISC | ASTM A351-CF8M | 1 |
| 5 | UPPER SHAFT | A630 | 1 |
| 6 | BUSHING | A316+PTFE | 6 |
| 7 | STOP RING | A316 | 1 |
| 8 | SHAFT PACKING | PTFE (RTFE SEAT) | 1 |
| 8A | SHAFT PACKING | GRAPHITE (INCONEL 625/FIRE SAFE SEAT) | 1 |
| 9 | HANLEVER | ALUMINIUM | 1 |
| SIZE | A | B | C | D | E | G | H | ØI | Ch | ØK | L1 | L2 | TOP | A150 (ØD) | A150 (M) | A150 (No.) | Cv | Weight (Lbs) | Break Torque (Nm) RTFE SEAT | Break Torque (Nm) INCONEL 625/FIRE SAFE SEAT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10" | 10.12 | 9.13 | 3.15 | 0.91 | 2.72 | 6.30 | 5.12 | 1.18 | 0.87 | 9.34 | - | - | F012/F14 | 14.25 | 7/8-9 | 12 | 3224.1 | 101.41 | 520 | 765 |
| 12" | 11.81 | 10.63 | 3.15 | 1.10 | 3.07 | 6.30 | 5.12 | 1.18 | 1.06 | 11.24 | - | - | F012/F14 | 17.00 | 7/8-9 | 12 | 4697 | 136.69 | 740 | 1085 |
| 14" | 12.91 | 11.97 | 3.94 | 1.10 | 3.62 | 7.87 | 5.51 | 1.57 | 1.06 | 12.61 | - | - | F14 | 18.75 | - | - | 5256.4 | 182.98 | 1190 | 1500 |
| 16" | 15.24 | 13.39 | 3.94 | 1.46 | 4.02 | 7.87 | 5.51 | 1.77 | 1.42 | 14.69 | - | - | F16 | 21.26 | - | - | 7490.3 | 235.89 | 1750 | 2470 |
| 2" | 4.61 | 3.19 | 1.97 | 1.34 | 1.69 | 3.94 | 2.76 | 0.55 | 0.43 | 2.02 | 2.64 | 8.66 | F05/F07 | 4.75 | 5/8-11 | 4 | 77.8 | 77.8 | 40 | 58 |
| 2 1/2" | 4.72 | 3.66 | 1.97 | 1.34 | 1.81 | 3.94 | 2.76 | 0.55 | 0.43 | 2.54 | 2.64 | 8.66 | F05/F07 | 5.50 | 5/8-11 | 4 | 134.6 | 15.43 | 48 | 70 |
| 3" | 5.08 | 3.98 | 1.97 | 1.34 | 1.81 | 3.94 | 2.76 | 0.55 | 0.43 | 3.22 | 2.64 | 8.66 | F05/F07 | 6.00 | 5/8-11 | 4 | 268.7 | 16.76 | 54 | 78 |
| 4" | 6.30 | 5.04 | 1.97 | 1.34 | 2.05 | 3.94 | 2.76 | 0.71 | 0.55 | 3.85 | 2.64 | 10.83 | F05/F07 | 7.50 | 5/8-11 | 8 | 420 | 21.38 | 62 | 89 |
| 5" | 6.69 | 6.26 | 1.97 | 1.50 | 2.20 | 4.72 | 3.54 | 0.87 | 0.67 | 4.80 | 2.99 | 13.39 | F07/F10 | 8.50 | 3/4-11 | 8 | 673.4 | 32.63 | 105 | 154 |
| 6" | 7.05 | 6.61 | 1.97 | 1.50 | 2.20 | 4.72 | 3.54 | 0.87 | 0.67 | 5.45 | 2.99 | 13.39 | F07/F10 | 9.50 | 3/4-10 | 8 | 1029 | 38.80 | 170 | 248 |
| 8" | 8.58 | 8.15 | 2.36 | 0.91 | 2.40 | 4.72 | 3.54 | 1.10 | 0.87 | 7.43 | - | - | F07/F10 | 11.75 | 3/4-10 | 8 | 1950 | 70.55 | 326 | 392 |
