CHECK VALVES

GS15P

Made in Italy

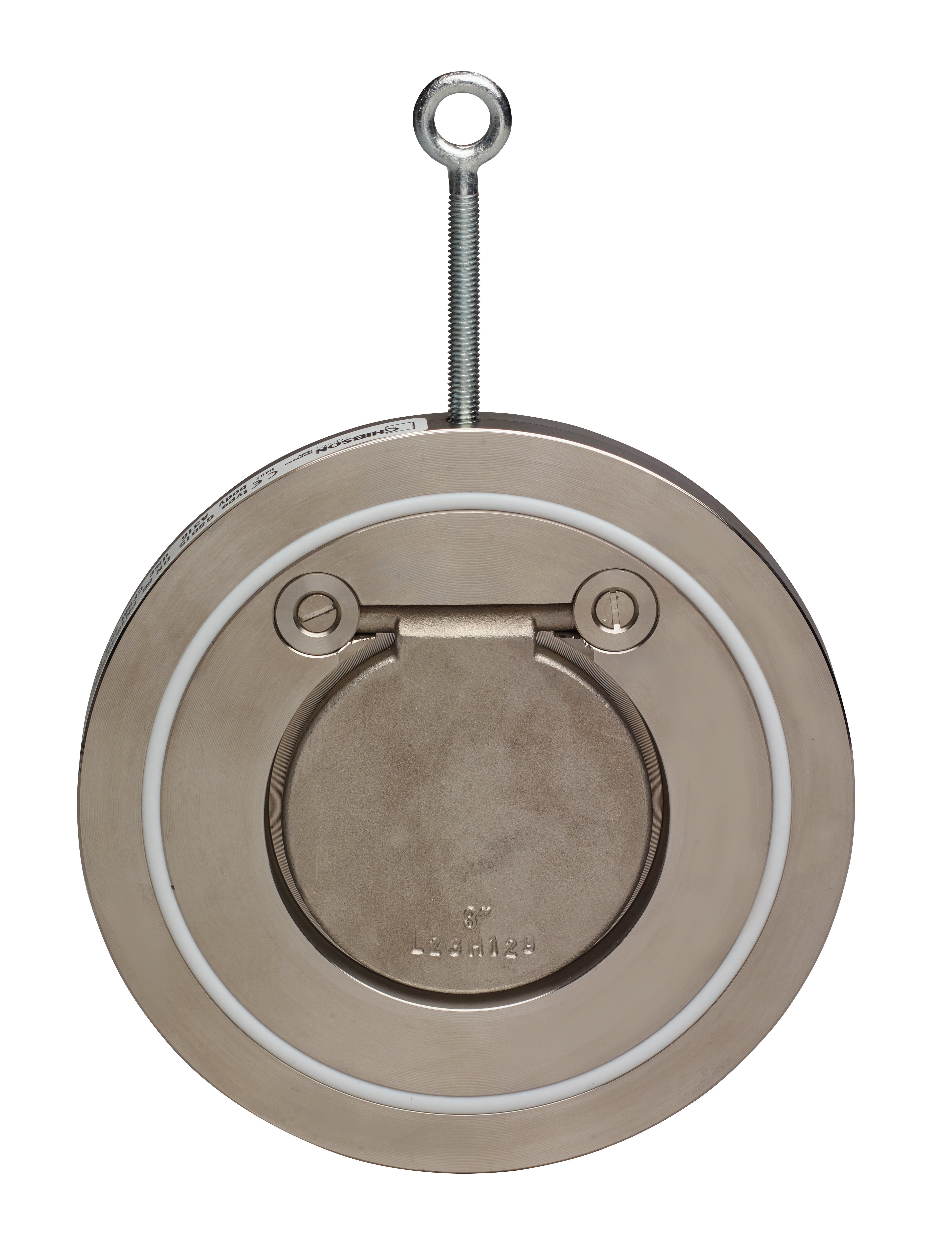

SWING CHECK VALVE

Stainless steel PTFE seated swing check valve.
• Pressure rating 360 psi: 1 1/2” - 20” and C/F: 24”.
• Temperature range -65°F to +390°F.
• Can be installed in two positions (upward and horizontal flow).
• Can be used with ANSI 150 flanges.
• Low head loss.
• Different materials available upon request.
• EPDM, NBR, or FKM seats available upon request.
GS15P: size 1 1/2” to 24”.

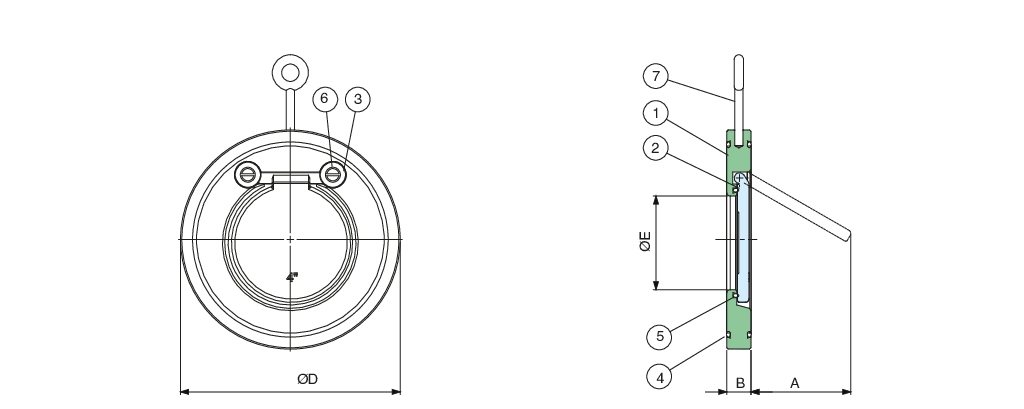

Technical specifications
Position Part name Material N.° pieces
1 BODY A316 1
2 CLAPET A316 1
3 WASHER A316 2
4 O-RING PTFE 2
5 O-RING PTFE 1
6 SCREW A316 2
7 EYE SCREW STEEL 1
SIZE D B E psi Weight ​​​​​​​(Lbs)
1 1-2" 3.39 0.55 0.87 360 1.54
10" 13.35 1.02 7.87 360 35.71
12" 16.14 1.26 9.45 360 61.73
14" 17.72 1.50 10.63 360 70.55
16" 20.24 1.73 12.20 360 105.82
18" 21.57 1.97 13.98 360 138.89
2" 4.17 0.55 1.26 360 1.98
20" 23.82 2.20 15.94 360 191.80
24" C/F C/F C/F C/F C/F
2 1/2" 4.88 0.55 1.57 360 2.65
3" 5.43 0.55 2.13 360 3.31
4" 6.89 0.71 2.76 360 5.51
5" 7.68 0.71 3.62 360 7.05
6" 8.70 0.79 4.41 360 11.68
8" 10.98 0.87 6.06 360 21.38
