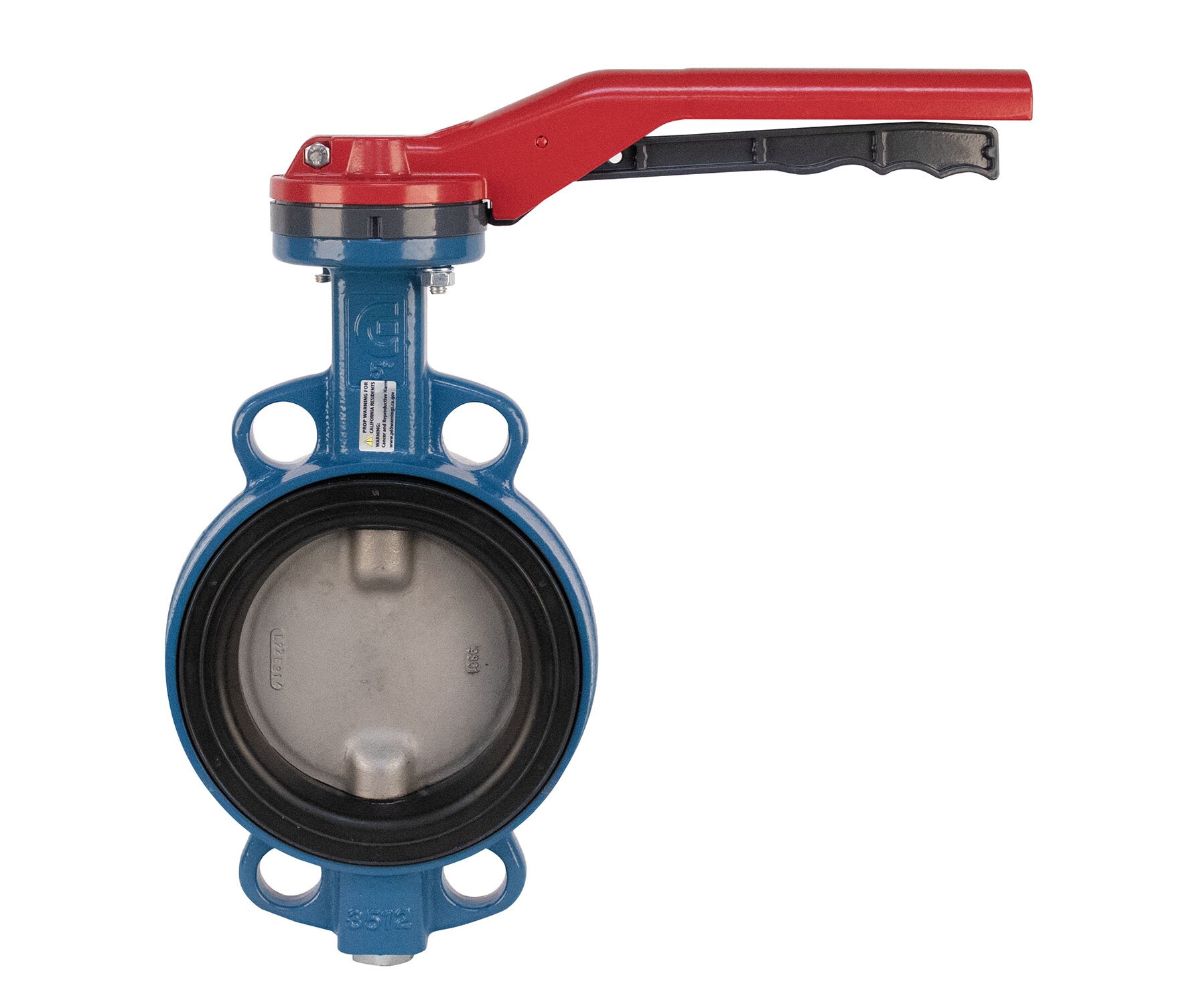

Manually operated Wafer butterfly valves.
• Epoxy coated ductile iron (EN-GJS 400-15) Wafer body.
• N500S - sizes 1-1/2” to 24”.
• ISO 5211 direct mounting pad/square stem.
• Food grade EPDM resilient seat -30°F to +266°F.
• API 609 face to face flange.
• Floating dual shaft disc design.
• Pressure rating: 250 psi: 1 1/2”-20” and 150 psi: 24”.
• MSS SP 67 compliant.
• No pins in disc prevent potential leak points.
• NSF certified for drinking water service.
N500S: size 1 1/2” to 24”.
530S: FKM SEATS - size 2” to 24”.
540S: NBR SEATS - size 2” to 24”.

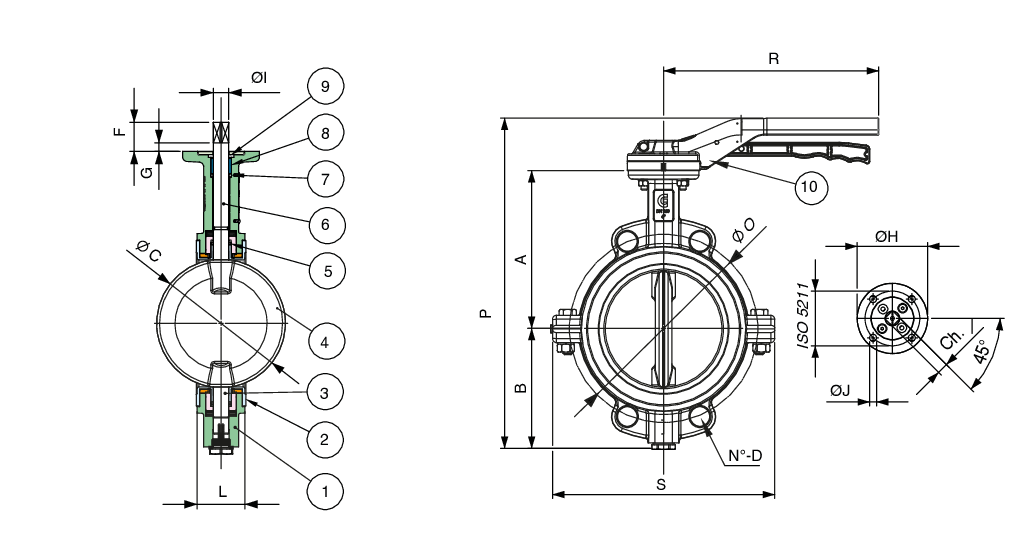

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | DUCTILE IRON | 1 |
| 2 | SEAT | EPDM | 1 |
| 3 | LOWER SHAFT | A430F | 1 |
| 4 | DISC | ASTM A351-CF8M (A316) | 1 |
| 5 | UPPER SHAFT | A430F | 1 |
| 6 | O-RING | NBR | 1 |
| 7 | BUSHING | SINT.BRONZE | 1 |
| 8 | STOP RING | SPRING STEEL | 1 |
| 9 | HANDLEVER | ALUMINIUM | 1 |
| SIZE | ISO 5211 | ⧄Ch | A | B | ØC | F | G | ØH | ØI | ØJ | L | N°-D | P | R | Weight (Lbs) | Seat Torque (lbf-in) 100 psi | Seat Torque (lbf-in) 250 psi | Cv (GPM at 1 psi) 50% OP | Cv (GPM at 1 psi) 100% OP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10"* | F10 | 22 mm | 10.63 | 8.66 | 9.84 | 1.50 | 0.39 | 4.92 | 1.18 | 0.43 | 2.68 | 4-1.10 | 21.93 | - | 48.50 | 1549 | 2832 | 730.5 | 5191.8 |
| 12"* | F10 | 22 mm | 11.81 | 9.72 | 11.73 | 1.50 | 0.39 | 4.92 | 1.18 | 0.43 | 3.07 | 4-1.10 | 24.17 | - | 70.55 | 2390 | 3452 | 1054.8 | 8169 |
| 14"* | F12 | 27 mm | 12.99 | 11.02 | 13.43 | 1.10 | - | 5.91 | 1.38 | 0.55 | 3.07 | 4-1.14 | 26.65 | - | 92.59 | 3983 | 7523 | 1449.4 | 9337.7 |
| 16"* | F12 | 27 mm | 13.98 | 12.01 | 15.35 | 1.10 | - | 5.91 | 1.57 | 0.55 | 4.02 | 4-1.18 | 28.62 | - | 167.55 | 4248 | 7966 | 1782.5 | 10871.9 |
| 18"* | F14 | 36 mm | 15.75 | 13.50 | 17.48 | 1.46 | - | 6.89 | 1.77 | 0.55 | 4.49 | 4-1.26 | 31.89 | - | 242.51 | 4602 | 6373 | 2398.2 | 15063.3 |
| 1 1/2" | F07 | 11 mm | 5.12 | 2.95 | 1.93 | 1.34 | 0.39 | 3.54 | 0.55 | 0.35 | 1.30 | 2-0.71 | 10.71 | 8.66 | 8.82 | 97 | 124 | 20.4 | 104 |
| 2" | F07 | 11 mm | 5.43 | 3.19 | 2.17 | 1.34 | 0.39 | 3.54 | 0.55 | 0.35 | 1.69 | 4-0.79 | 11.26 | 8.66 | 10.14 | 106 | 133 | 31.8 | 134.9 |
| 20"* | F14/16 | 36 mm | 16.61 | 14.41 | 19.49 | 1.46 | - | 8.27 | 1.77 | 0.71/0.87 | 5.00 | 4-1.26 | 33.66 | - | 308.65 | 5310 | 7169 | 2920 | 18313 |
| 24"* | F16 | 46 mm | 19.49 | 18.11 | 23.43 | 2.95 | - | 8.27 | 2.36 | 0.87 | 6.06 | 4-1.54 | 40.24 | - | 485.02 | 17347 | 20357 | 4510 | 25473.2 |
| 2 1/2" | F07 | 11 mm | 5.67 | 3.86 | 2.68 | 1.34 | 0.39 | 3.54 | 0.55 | 0.35 | 1.81 | 4-0.79 | 12.17 | 8.66 | 12.13 | 142 | 159 | 48 | 254.2 |
| 3" | F07 | 11 mm | 6.22 | 4.33 | 3.19 | 1.34 | 0.39 | 3.54 | 0.55 | 0.35 | 1.81 | 4-0.79 | 13.19 | 8.66 | 12.79 | 266 | 354 | 72.6 | 431.5 |
| 4" | F07 | 11 mm | 6.81 | 5.04 | 3.98 | 1.34 | 0.39 | 3.54 | 0.63 | 0.35 | 2.05 | 4-0.98 | 14.49 | 8.66 | 17.20 | 381 | 425 | 109.1 | 689.5 |
| 5" | F07 | 14 mm | 7.32 | 5.51 | 4.96 | 1.34 | 0.39 | 3.54 | 0.71 | 0.35 | 2.20 | 4-0.98 | 15.47 | 10.83 | 20.39 | 460 | 620 | 173.2 | 1200 |
| 6" | F07 | 14 mm | 7.95 | 6.10 | 5.91 | 1.34 | 0.39 | 3.54 | 0.71 | 0.35 | 2.20 | 4-0.98 | 16.69 | 10.83 | 24.58 | 531 | 797 | 260.7 | 1756.1 |
| 8" | F10 | 17 mm | 9.45 | 7.48 | 7.87 | 1.50 | 0.39 | 4.92 | 0.87 | 0.43 | 2.36 | 4-0.98 | 19.57 | - | 30.86 | 947 | 1859 | 482.4 | 3105.2 |
*10" and 24" available in bare stem version only.
