A Bonomi Group company
Manually operated ANSI 150 class, high performance Wafer style butterfly valves.
• Temperature range -20°F to +446°F, 150 WSP.
• ISO 5211 direct mounting pad/square stem.
• Compact design, easy access to packing.
• Replaceable seat design.
• Multiple V-ring stem packing.
• RPTFE seats, metal seats upon request.
• 18” to 24” sizes available upon request.
• NACE MR 0175.
• FC170-2 compliant.
• CRNs available upon request.
• 10 position locking handle.
• Soft seat leakage protection - Class VI.
• Metal seat leakage protection - Class V.
8100-9100: size 2” to 16”.
8120-9120: METAL SEATED VERSION - size 2” to 16”.
8140-9140: API 607 FIRE SAFE VERSION - size 2” to 16”.
G8100-G9100: GEAR OPERATED VERSION - size 2” to 16”.

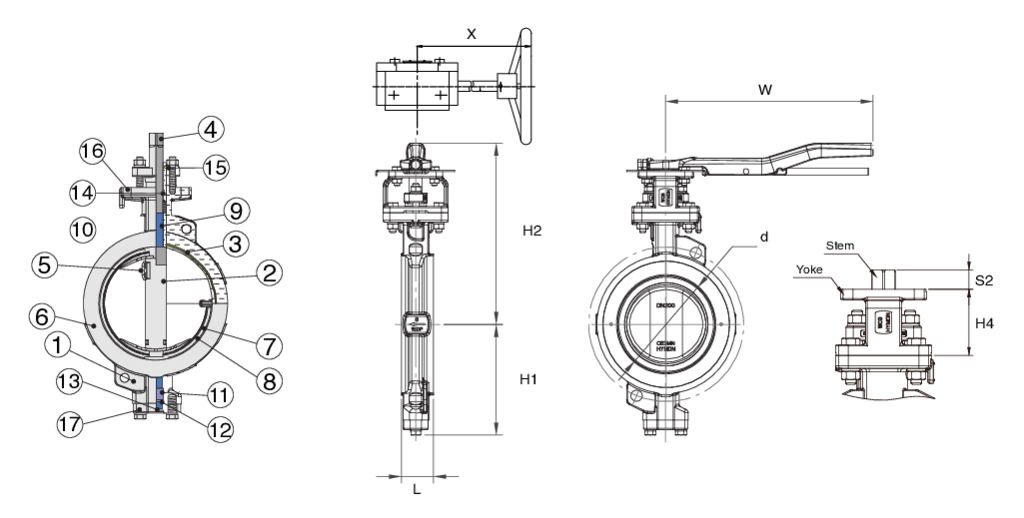

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | A216 Gr. WCB | 1 |
| 2 | DISC | A351 Gr. CF8M | 1 |
| 3 | SEAT (Series 8100-9100) | Carbon-filled PTFE | 1 |
| 3 | SEAT (Series 8120-9120) | Inconel 718 | 1 |
| 3 | SEAT (Series 8140-9140) | Fire safe seat | 1 |
| 4 | STEM | A182 Gr. F316 | 1 |
| 5 | TAPER PIN | A182 Gr. F316L | 2 |
| 6 | RETAINER RING | A351 Gr. CF8M | 1 |
| 7 | SPRING | A182-F316 | 1 |
| 8 | LOCK PIN | PTFE | 1 |
| 9 | STEM BUSH | PTFE + SS 316L | 2 |
| 10 | GLAND PACKING | Carbon-filled RTFE | 1 |
| 11 | THRUST RING | A351 Gr. CF8M | 1 |
| 12 | THRUST PLATE | PTFE + SS 316L | 1 |
| 13 | GASKET | PTFE | 1 |
| 14 | GLAND BUSH | A351 Gr. CF8M | 1 |
| 15 | ANTI-BLOWOUT PIN | A182 Gr. F316 | 1 |
| 16 | GLAND FLANGE | A351 Gr. CF8 | 1 |
| 17 | BOTTOM COVER | A351 Gr. CF8M | 1 |
| SIZE | L | d | H1 | H2 | W | X | H4 | S2 | Stem | Yoke ISO | Cv | Break Torque (lbf-in) | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10"* | 2.76 | 9.29 | 10.00 | 10.24 | - | 8.82 | 3.94 | 0.94 | 22 | F10 | 3199 | 1407 | 66.0 |
| 12"* | 3.19 | 11.06 | 11.73 | 11.42 | - | 8.46 | 3.94 | 1.14 | 27 | F12 | 4672 | 2266 | 101.0 |
| 14"* | 3.62 | 12.38 | 11.97 | 17.95 | - | 13.62 | 3.94 | 1.10 | 27 | F14 | 3740 | 2266 | 231.5 |
| 16"* | 4.02 | 14.47 | 13.39 | 20.63 | - | 13.62 | 3.94 | 1.46 | 36 | F16 | 5449 | 1859 | 284.4 |
| 2" | 1.77 | 1.81 | 4.65 | 9.21 | 8.66 | 6.06 | 2.76 | 0.63 | 14 | F07 | 70 | 133 | 11.0 |
| 2 1/2" | 1.89 | 2.40 | 4.96 | 9.53 | 8.66 | 6.06 | 2.76 | 0.63 | 14 | F07 | 150 | 150 | 13.0 |
| 3" | 1.89 | 2.99 | 5.28 | 10.24 | 8.66 | 6.06 | 2.76 | 0.63 | 14 | F07 | 227 | 177 | 15.0 |
| 4" | 2.13 | 3.78 | 5.67 | 10.63 | 8.66 | 6.06 | 2.76 | 0.63 | 14 | F07 | 473 | 283 | 20.0 |
| 5" | 2.24 | 4.65 | 7.01 | 11.42 | 11.81 | 6.06 | 2.76 | 0.75 | 17 | F07 | 605 | 381 | 26.0 |
| 6" | 2.24 | 5.63 | 7.48 | 12.01 | 11.81 | 6.06 | 3.15 | 0.75 | 17 | F07 | 1010 | 487 | 29.0 |
| 8" | 2.44 | 7.40 | 8.43 | 13.78 | 15.75 | 8.82 | 3.15 | 0.83 | 17 | F10 | 2004 | 894 | 46.0 |
