BONOMI NORTH AMERICA

NCI150E

CHECK VALVE

Double door wafer style check valve.
• Ductile iron body.
• Stainless steel dual disc.
• Stainless steel spring loaded.
• Pressure rating 200 psi.
• Temperature range -30°F to +250°F (EPDM seats).
• Epoxy coated body.
• Food grade EPDM or Viton seat options.
• Can be used with ANSI 125 or 150 flanges.
• Light weight and compact.
• NSF certified for drinking water service (EPDM seats only).
NCI150E: size 2” to 12”.

Technical specifications

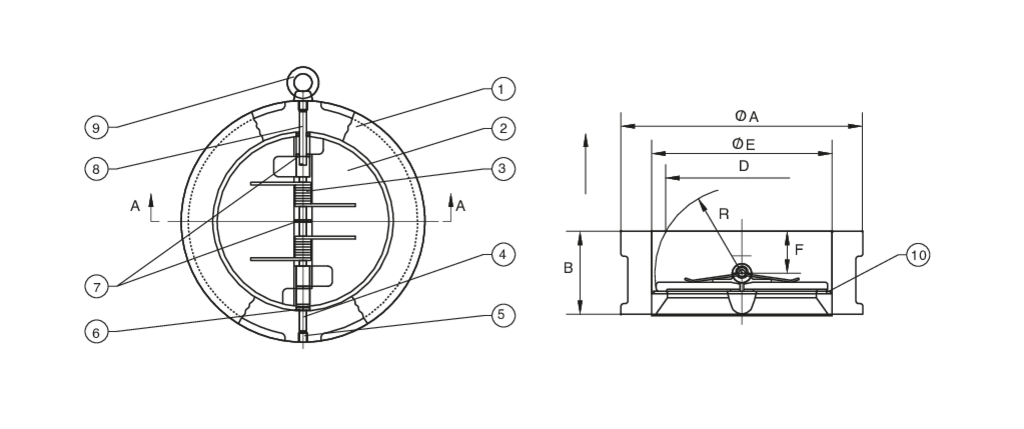

Position	Part name	Material	N.° pieces
1	BODY	CAST IRON DUCTILE IRON	1
2	PLATE	DUCTILE IRON+NI - CF8M	1
3	SPRING	STAINLESS STEEL	1
4	HINGE PIN	STAINLESS STEEL	1
5	PLUG	CARBON STEEL	1
6	BODY BEARING	PTFE	1
7	SPRING BEARING	PTFE	1
8	STOP PIN	STAINLESS STEEL	1
9	EYE BOLT	CARBON STEEL	1
10	BODY SEAT	EPDM-VITON	1

SIZE	ØA	B	D	ØE	F	R	Cv	psi	Cracking pressure (psig)	Weight (Lbs)
10"	13.2	4.49	9.2	10.43	1.96	4.99	2700	300	11.60	57.30
12"	15.9	4.49	11.18	12.2	1.69	5.83	4300	300	14.50	92.60
2"	4.01	1.69	1.7	2.56	0.74	1.13	70	300	4.35	3.30
2 1/2"	4.76	1.81	2.37	3.15	0.78	1.42	120	300	6.53	5.30
3"	5.23	2.52	2.61	3.7	1.1	1.7	190	300	6.53	7.90
4"	6.73	2.52	3.57	4.61	1.06	2.07	340	300	8.70	12.60
5"	7.59	2.76	4.6	5.71	1.18	2.58	590	300	10.88	16.10
6"	8.62	2.99	5.69	6.69	1.22	3.09	870	300	10.88	19.80
8"	10.8	3.5	7.8	8.82	1.29	4.11	1650	300	11.60	37.50

Certifications

NSF

NSF-ANSI
