STAINLESS STEEL SANITARY BUTTERFLY VALVE

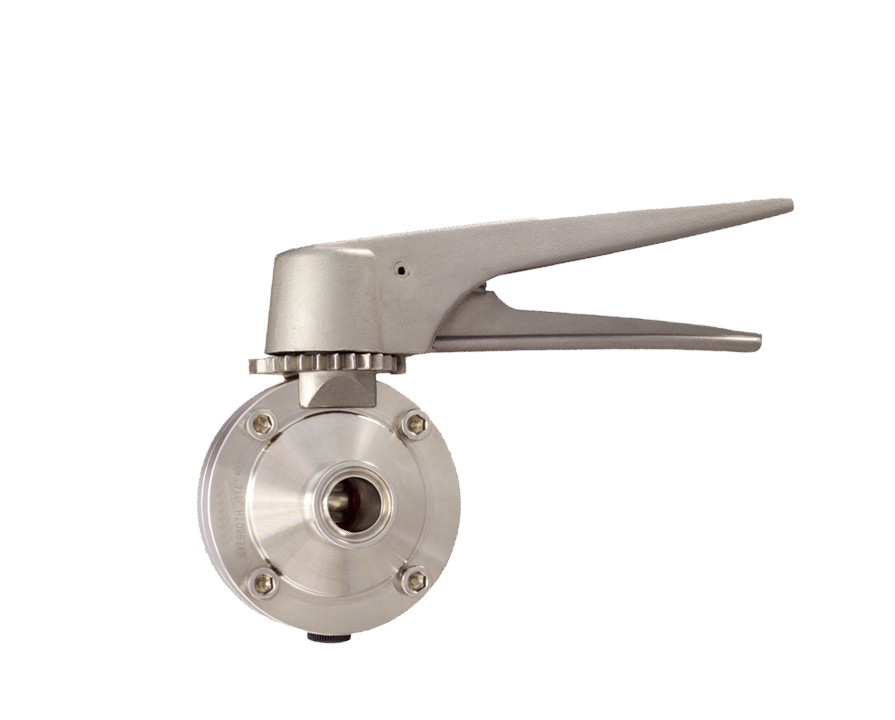

Stainless steel butterfly valve with EPDM seats and Sanitary Tri-Clamp Ends.
• AISI 316 L stainless steel.
• EPDM seat standard.
• Silicone or FKM (Viton) seats optional.
• Full port, sizes 1/2” to 8.”
• Sanitary Tri-Clamp Ends.
• Surface finish meets 3-A, FDA & USDA standards.
• 13-position, 304SS spring loaded lever lock handle 1/2” to 6”.
• 110 PSI @ 200°F.
BFVSTCE: size 1/2” to 8”.

Technical specifications

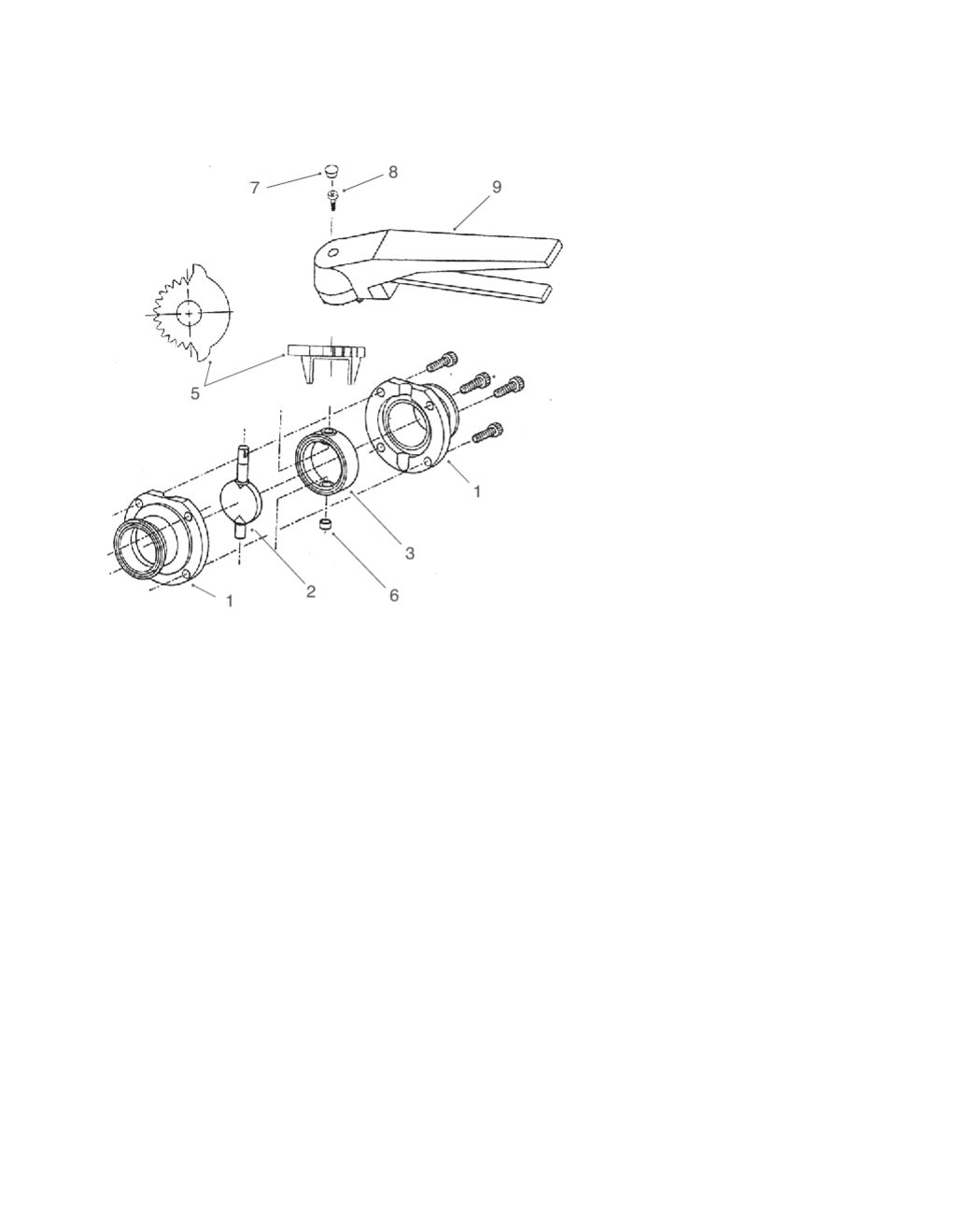

Position Part name Material
1 BODY HALF (2) AISI 316L
2 DISC AISI 316L
3 SEAT EPDM
4 BODY BOLTS (4) AISI 304
5 NOTCH PLATE AISI 316
6 BODY CAP BUNA-N
7 HANDLE CAP BUNA-N
8 HANDLE SCREW AISI 04
9 13-POSITION HANDLE AISI 304

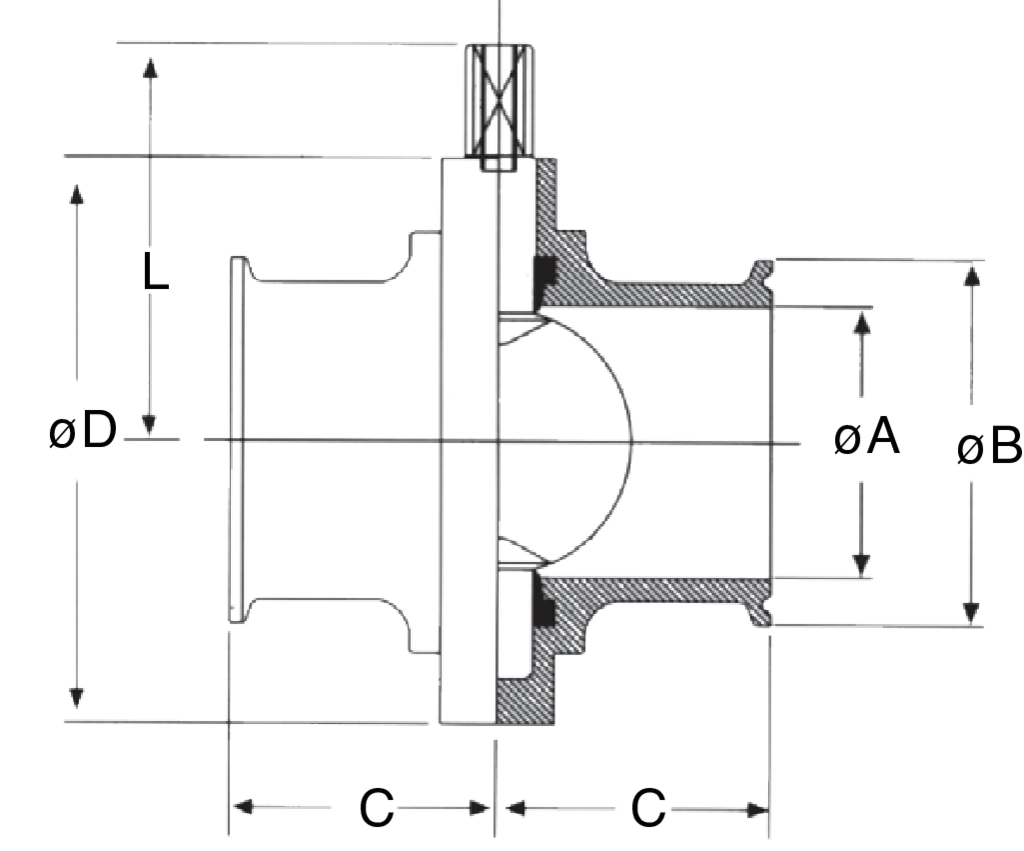

SIZE A B C D L Break Torque Cv Weight Lbs
1/2" 3 1 1.75 3.1 2.16 60 7 3.38
3/4" 3 1 1.75 3.1 2.16 70 11 3.38
1" 0.87 1.99 1.75 3.11 2.4 140 23 3.38
1 1/2" 1.37 1.99 1.75 3.35 2.53 165 80 3.25
2" 1.87 2.52 1.87 4.13 2.93 185 230 3.84
2 1/2" 2.37 3.05 1.91 4.41 3.06 200 264 4.84
3" 2.84 3.58 2.03 4.92 3.32 255 372 5.79
4" 3.84 4.69 2.39 6.18 4 350 800 7.96
6" 5.84 6.57 3 8.2 6.35 925 1200 9.95
8" 7.93 8.54 3.28 11.22 7.83 960 2800 12.43
