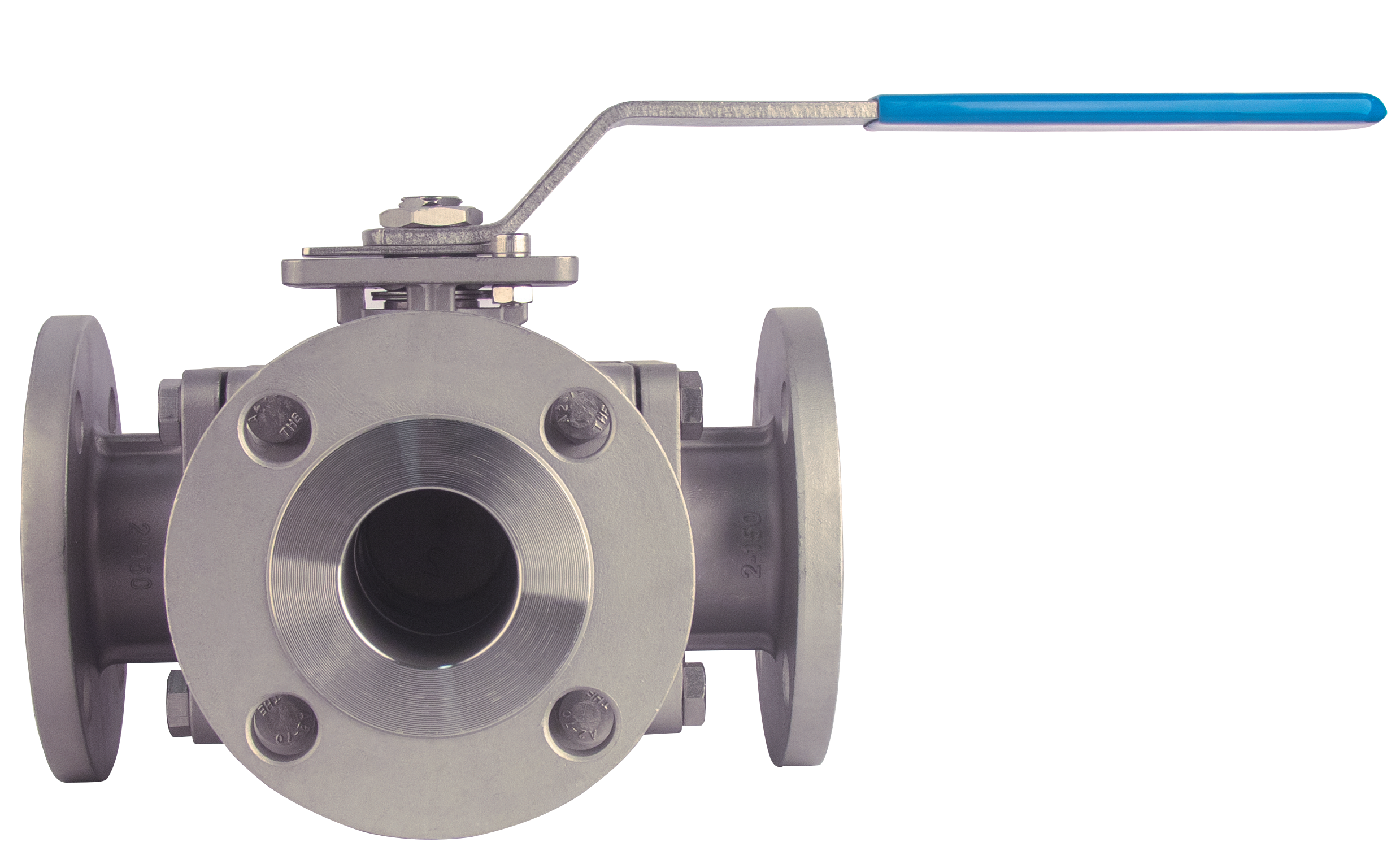

3-way ANSI 150 direct mount stainless steel, block body, full port ball valve.
• ANSI 150 full port flanged.
• Temperature range -4°F to +366°F.
• ISO 5211 mounting pad.
• Reinforced TFE seats and seals.
• Multiple chevron style stem packing.
• Investment cast and sand cast body construction.
• Meets International standards.
• 1000 PSI WOG.
• "T" and "L" port designs.
97L150 - 97T150: sizes 1/2” to 6”.

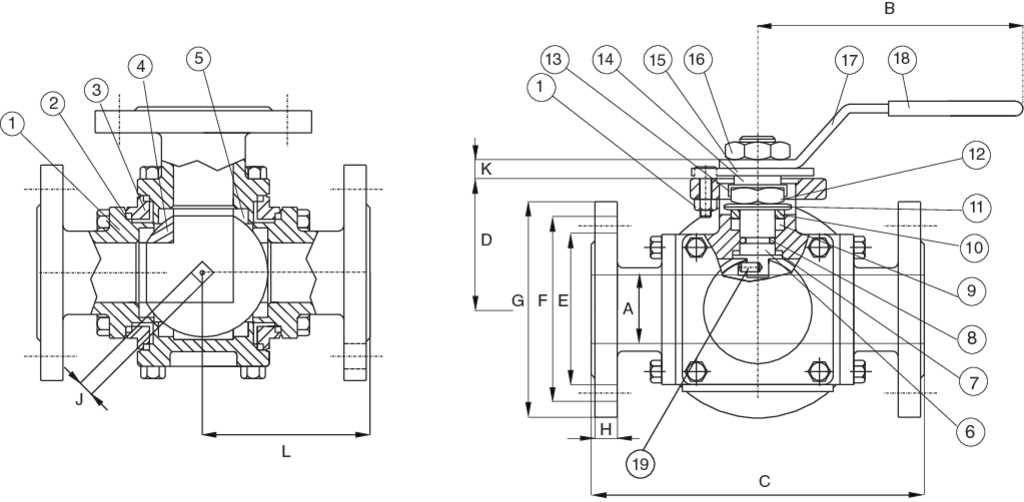

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | FLANGED ENDS | A351-CF8M | 3 |
| 2 | GASKET | PTFE | 4 |
| 3 | BODY | A351-CF8M | 1 |
| 4 | BALL | AISI 316 | 1 |
| 5 | BALL SEATS | PTFE | 4 |
| 6 | THRUST WASHER | RPTFE | 1 |
| 7 | STEM | AISI 316 | 1 |
| 8 | O-RING | FKM (Viton) | 1 |
| 9 | STEM PACKING | PTFE | 1 |
| 10 | GLAND | AISI 304 | 2 |
| 11 | DISC WASHER | AISI 301 | 1 |
| 12 | STEM NUT | AISI 304 | 1 |
| 13 | NUT STOP | AISI 304 | 1 |
| 14 | SPACE WASHER | AISI 304 | 1 |
| 15 | STOPPER PLATE | AISI 304 | 1 |
| 16 | HANDLE NUT | AISI 304 | 1 |
| 17 | HANDLE | AISI 304 | 1 |
| 18 | HANDLE SLEEVE | VINYL | 1 |
| 19 | INSERT PIN | AISI 304 | 1 |
| 20 | STOP PIN | AISI 316 | 1 |
| 21 | STOP PIN NUT | AISI 304 | 1 |
| 22 | BOLTS | AISI 304 | 8 |
| SIZE | A | B | C | D | E | F | G | H | J | K | L | ISO 5211 | Cv | Break Torque | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.59 | 5.12 | 5.98 | 1.61 | 1.39 | 2.38 | 3.50 | 0.44 | 9 | 11 | 2.99 | F03/F04 | 6 | 110 | 8.00 |
| 3/4" | 0.79 | 6.50 | 6.57 | 1.93 | 1.69 | 2.76 | 3.86 | 0.44 | 11 | 14 | 3.29 | F04/F05 | 16 | 125 | 10.00 |
| 1" | 0.98 | 6.50 | 7.48 | 2.17 | 2.01 | 3.13 | 4.25 | 0.44 | 11 | 14 | 3.74 | F04/F05 | 31 | 325 | 14.00 |
| 1 1/2" | 1.50 | 8.07 | 8.66 | 2.91 | 2.87 | 3.88 | 5.00 | 0.56 | 14 | 18 | 4.33 | F05/F07 | 75 | 500 | 27.00 |
| 2" | 1.97 | 12.80 | 9.96 | 3.66 | 3.62 | 4.74 | 5.98 | 0.62 | 17 | 23 | 4.98 | F07/F10 | 140 | 900 | 47.00 |
| 2 1/2" | 2.44 | 15.75 | 11.81 | 4.67 | 4.13 | 5.49 | 7.01 | 0.70 | 22 | 25 | 5.91 | F10 | 210 | 1200 | 63.00 |
| 3" | 2.99 | 19.69 | 12.01 | 5.37 | 5.00 | 6.00 | 7.48 | 0.75 | 22 | 25 | 6.01 | F10 | 375 | 1500 | 76.00 |
| 4" | 3.78 | 25.59 | 14.51 | 6.16 | 6.18 | 7.50 | 9.02 | 0.94 | 22 | 25 | 7.26 | F10 | 670 | 3000 | 161.00 |
| 6" | 5.91 | 47.24 | 16.81 | 6.28 | 8.50 | 9.51 | 11.00 | 1.00 | 36 | 36 | 8.41 | F12 | 4743 | 5000 | 290.00 |
