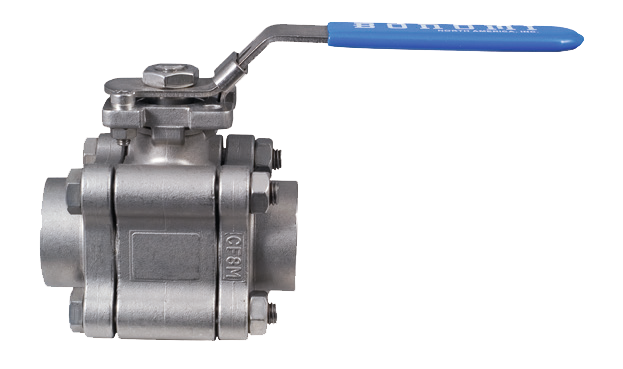

Stainless steel direct mount high pressure, high temperature 3-piece full port ball valve with locking lever.
• High pressure to 3600 psi.
• Temperature range: +150°F to 500°F.
• High temperature to 500°F max.
• Direct mounting to ISO 5211/square stem.
• PEEK seats.
• Standard latch locking handle.
• Conforms to ANSI B16.34, ANSI B1.20.1 thread depths, NACE MR0175.
740H (NPT) - 741LL (SW) - 742LL (BW): size 1/4” to 1”.
* Depending on the size.

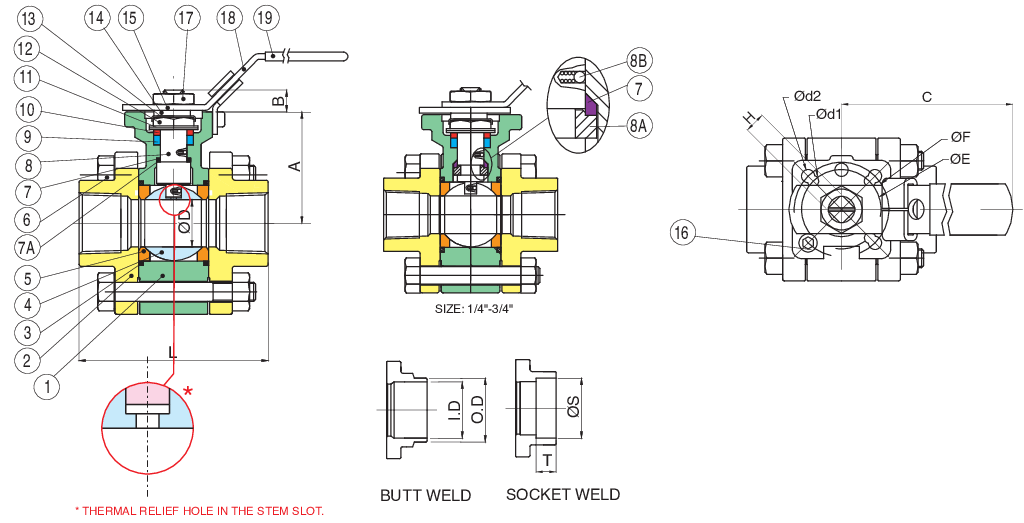

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | CF8M | 1 |
| 2 | END CAP | CF8M | 2 |
| 3 | GASKET (BODY) | TFM | 2 |
| 4 | BALL | AISI 316 | 1 |
| 5 | BALL SEATS | PEEK | 2 |
| 6 | BOLTS | AISI 304 | * |
| 7 | THRUST WASHER | TFM | 1 |
| 7 | THRUST WASHER | PEEK | 1 |
| 8 | STEM | AISI 316 | 1 |
| 8 | HALF SPLIT RING | AISI 316 | 1 |
| 8 | ANTI-STATIC | AISI 316 | 1 |
| 9 | STEM PACKING | TFM | 1 |
| 10 | GLAND WASHER | AISI 304 | 1 |
| 11 | DISK WASHER | AISI 301 | 1 |
| 12 | STEM NUT | AISI 304 | 1 |
| 13 | NUT STOP | AISI 304 | 1 |
| 14 | SPACE WASHER | AISI 304 | 1 |
| 15 | PLATER | AISI 304 | 1 |
| 16 | STOP IN | AISI 304 | 1 |
| 17 | HANDLE NUT | AISI 304 | 1 |
| 18 | HANDLE | AISI 304 | 1 |
| 19 | HANDLE COVER | PLASTISOL | 1 |
| SIZE | A | B | ØD | Ød1 | Ød2 | ISO 5211 ØE | ISO 5211 ØF | H mm | L | SW ØS | SW T | BW (80#) O.D | BW (80#) I.D | Torque in. lbs. | Cv | Weight Lbs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 1.81 | 0.37 | 0.43 | 0.24 | 0.24 | F03 | F04 | 9 | 2.61 | 0.56 | 0.44 | 0.55 | 0.3 | 71 | 8.5 | 1.5 |
| 3/8" | 1.81 | 0.37 | 0.49 | 0.24 | 0.24 | F03 | F04 | 9 | 2.61 | 0.69 | 0.44 | 0.67 | 0.43 | 71 | 8.5 | 1.5 |
| 1/2" | 1.89 | 0.37 | 0.59 | 0.24 | 0.24 | F03 | F04 | 9 | 2.76 | 0.86 | 0.5 | 0.84 | 0.54 | 107 | 21 | 2.2 |
| 3/4" | 2.08 | 0.47 | 0.79 | 0.24 | 0.24 | F04 | F05 | 11 | 3.62 | 1.07 | 0.56 | 1.05 | 0.74 | 133 | 50 | 3.8 |
| 1" | 2.32 | 0.47 | 0.98 | 0.24 | 0.27 | F04 | F05 | 11 | 4.13 | 1.33 | 0.63 | 1.31 | 0.96 | 160 | 90 | 5.6 |
