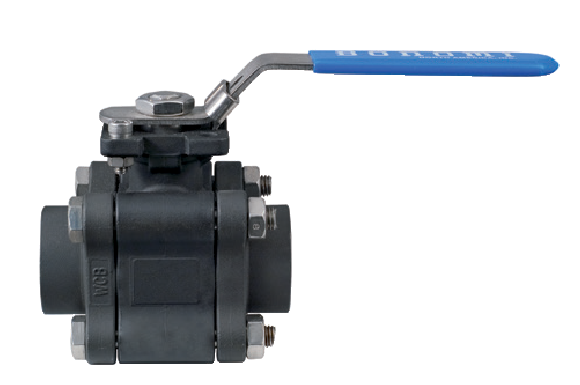

Carbon steel direct mount 3 piece V-port ball valve with locking lever, sizes 1/4” to 4”.
• Temperature range -4°F to 406°F.
• Class 900 sizes 1/4” to 2, Class 600 sizes 2 1/2” to 4”.
• Working pressure: 2200 psi (1/4” to 2”), 1480 psi (2 1/2” to 4”).
• ISO 5211 mounting pad/square stem.
• TFM-4215 ball seats.
• Standard latch locking handle.
• Conforms to ANSI B16.34, ANSI B1.20.1 thread depths, NACE MR0175.
• Fire Safe to API 607-6th edition.
• Working steam pressure 250 psi.
• Standard SS 316 and stem in carbon steel models.
• Temperature range: -50°F to 550°F.
250 PSI STEAM
| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | WCB | 1 |
| 2 | END CAP | WCB | 2 |
| 3 | GASKEY (BODY) | TFM | 2 |
| 4 | BALL | SS 316 | 1 |
| 5 | BALL SEATS | TFM 4215 | 2 |
| 6 | BOLTS | SS 304 | * |
| 7 | THRUST WASHER | TFM | 1 |
| 7 | THRUST WASHER | PEEK | 1 |
| 8 | STEM | SS 316 | 1 |
| 8 | HALF SPLIT RING | SS 316 | 1 |
| 8 | ANTI-STATIC | SS 316 | 1 |
| 9 | STEM PACKING | TFM | 1 |
| 10 | GLAND WASHER | SS 304 | 1 |
| 11 | DISK WASHER | SS 301 | 1 |
| 12 | STEM NUT | SS 304 | 1 |
| 13 | NUT STOP | SS 304 | 1 |
| 14 | SPACE WASHER | SS 304 | 1 |
| 15 | PLATER | SS 304 | 1 |
| 16 | STOP IN | SS 304 | 1 |
| 17 | HANDLE NUT | SS 304 | 1 |
| 18 | HANDLE | SS 304 | 1 |
| 19 | HANDLE COVER | PLASTISOL | 1 |
* Depending on size.
| SIZE | A | B | ØD | Ød1 | Ød2 | ISO 5211 ØE | ISO 5211 ØF | H mm | L | SW ØS | SW T | BW (40#) I.D | BW (40#) O.D | Break Torque in. Lbs | WOG | Weight Lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 1.81 | 0.37 | 0.43 | 0.24 | 0.24 | F03 | F04 | 9 | 2.61 | 0.56 | 0.44 | 0.55 | 0.36 | 71 | 2000 | 1.5 |
| 3/8" | 1.81 | 0.37 | 0.49 | 0.24 | 0.24 | F03 | F04 | 9 | 2.61 | 0.69 | 0.44 | 0.67 | 0.5 | 71 | 2200 | 1.5 |
| 1/2" | 1.89 | 0.37 | 0.59 | 0.24 | 0.24 | F03 | F04 | 9 | 2.76 | 0.86 | 0.5 | 0.84 | 0.63 | 107 | 2200 | 2.2 |
| 3/4" | 2.08 | 0.47 | 0.79 | 0.24 | 0.24 | F04 | F05 | 11 | 3.62 | 1.07 | 0.56 | 1.05 | 0.82 | 133 | 2200 | 3.8 |
| 1" | 2.32 | 0.47 | 0.98 | 0.24 | 0.27 | F04 | F05 | 11 | 4.13 | 1.33 | 0.63 | 1.31 | 1.05 | 160 | 2200 | 5.6 |
| 1 1/4" | 2.44 | 0.57 | 1.26 | 0.27 | 0.36 | F05 | F07 | 14 | 4.37 | 1.67 | 0.69 | 1.66 | 1.38 | 222 | 2200 | 7.0 |
| 1 1/2" | 2.75 | 0.57 | 1.49 | 0.27 | 0.36 | F05 | F07 | 14 | 4.88 | 1.92 | 0.72 | 1.91 | 1.61 | 416 | 2200 | 11 |
| 2" | 3.54 | 0.75 | 4.97 | 0.36 | 0.45 | F07 | F10 | 17 | 5.91 | 2.41 | 0.84 | 2.38 | 2.06 | 736 | 2200 | 22 |
| 2 1/2" | 4.13 | 0.71 | 2.5 | 0.36 | 0.45 | F07 | F10 | 17 | 6.5 | 2.91 | 0.87 | 2.88 | 2.47 | 1461 | 1480 | 32 |
| 3" | 4.68 | 0.98 | 3.07 | 0.45 | 0.53 | F10 | F12 | 22 | 7.68 | 3.54 | 1 | 3.51 | 3.07 | 2213 | 1480 | 44 |
| 4" | 5.67 | 0.98 | 3.89 | 0.45 | 0.53 | F10 | F12 | 22 | 9.65 | 4.54 | 1.26 | 4.51 | 4.02 | 3368 | 1480 | 87 |
