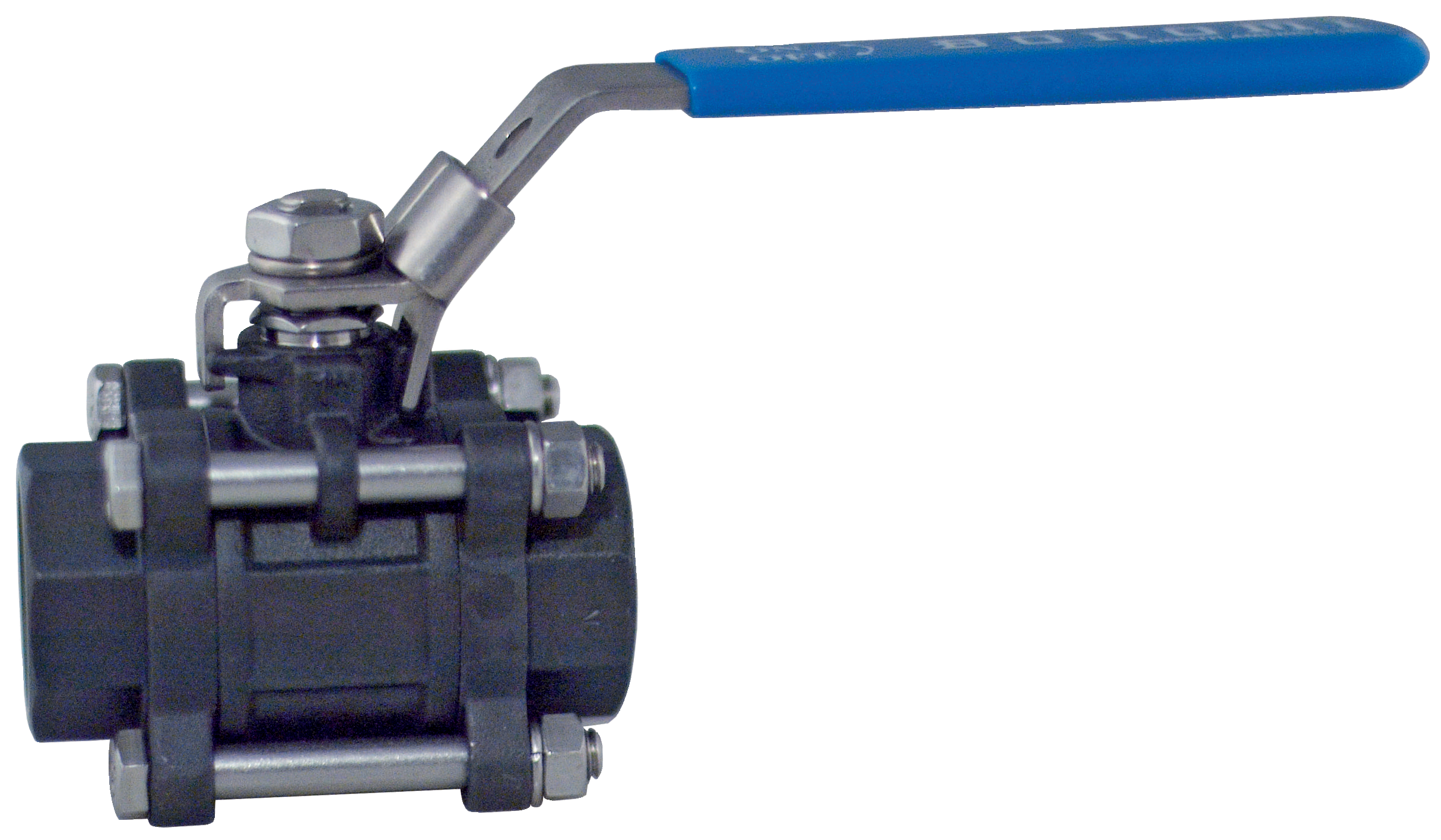

3-piece ball valve, with latch locking lever, full port.
• Pressure rating 1/4” to 2” 1000 psi, 2 1/2” to 4” 800 psi - 150 psi steam.
• Temperature range -40°F + 440°F.
• Blow-out proof stem, adjustable multi-layer V-ring stem packaging.
• TFM 1600 seats, PTFE packing and thrust washer.
610 LL: FNPT THREADED - size 1/4” to 4”.
611 LL: SOCKET WELD - size 1/4” to 4”.
| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | WCB | 1 |
| 2 | END CAP | WCB | 2 |
| 3 | BALL | AISI 316 | 1 |
| 4 | SEAT | TFM1600 | 2 |
| 5 | JOIN GASKET | PTFE | 2 |
| 6 | STEM SEAL | PTFE | 1 |
| 7 | STEM | AISI 316 | 1 |
| 8 | STEM PACKING | PTFE | * |
| 9 | GLAND NUT | AISI 304 | 1 |
| 10 | STEM WASHER | AISI 304 | 1 |
| 11 | STEM NUT | AISI 304 | 1 |
| 12 | HANDLE | AISI 304 | 1 |
| 13 | HANDLE SLEEVE | VINYL | 1 |
| 14 | LOCKING DEVICE | AISI 304 | 1 |
| 15 | BOLT | AISI 304 | * |
| 16 | BOLT NUT | AISI 304 | * |
| 17 | BOLT WASHER | AISI 304 | * |
| 18 | HANDLE WASHER | AISI 304 | 1 |
* Depending on size.
| SIZE | A | B | C | D | E | F | Cv | Weight Lbs |
|---|---|---|---|---|---|---|---|---|
| 1/4" | 0.46 | 2.23 | 0.73 | 2.13 | 4.02 | 0.2 | 8 | 0.77 |
| 3/8" | 0.5 | 2.23 | 0.73 | 2.13 | 4.02 | 0.2 | 10 | 0.77 |
| 1/2" | 0.59 | 2.59 | 0.93 | 2.52 | 5.2 | 0.26 | 15 | 1.23 |
| 3/4" | 0.79 | 3 | 1.1 | 2.64 | 5.2 | 0.26 | 34 | 1.65 |
| 1" | 0.98 | 3.39 | 1.34 | 2.95 | 6.58 | 0.32 | 56 | 2.29 |
| 1 1/4" | 1.26 | 4.05 | 1.67 | 3.15 | 6.58 | 0.32 | 85 | 3.84 |
| 1 1/2" | 1.5 | 4.7 | 2.09 | 3.54 | 7.56 | 0.38 | 125 | 5.31 |
| 2" | 1.97 | 5.17 | 2.54 | 3.86 | 7.56 | 0.38 | 250 | 8.07 |
| 2 1/2" | 2.56 | 6.46 | 3.43 | 5.39 | 9.92 | 0.47 | 320 | 15.65 |
| 3" | 3.15 | 7.19 | 3.9 | 5.79 | 9.92 | 0.47 | 580 | 23.15 |
| 4" | 3.94 | 9.28 | 5 | 6.89 | 11.1 | 0.59 | 1020 | 45.78 |
