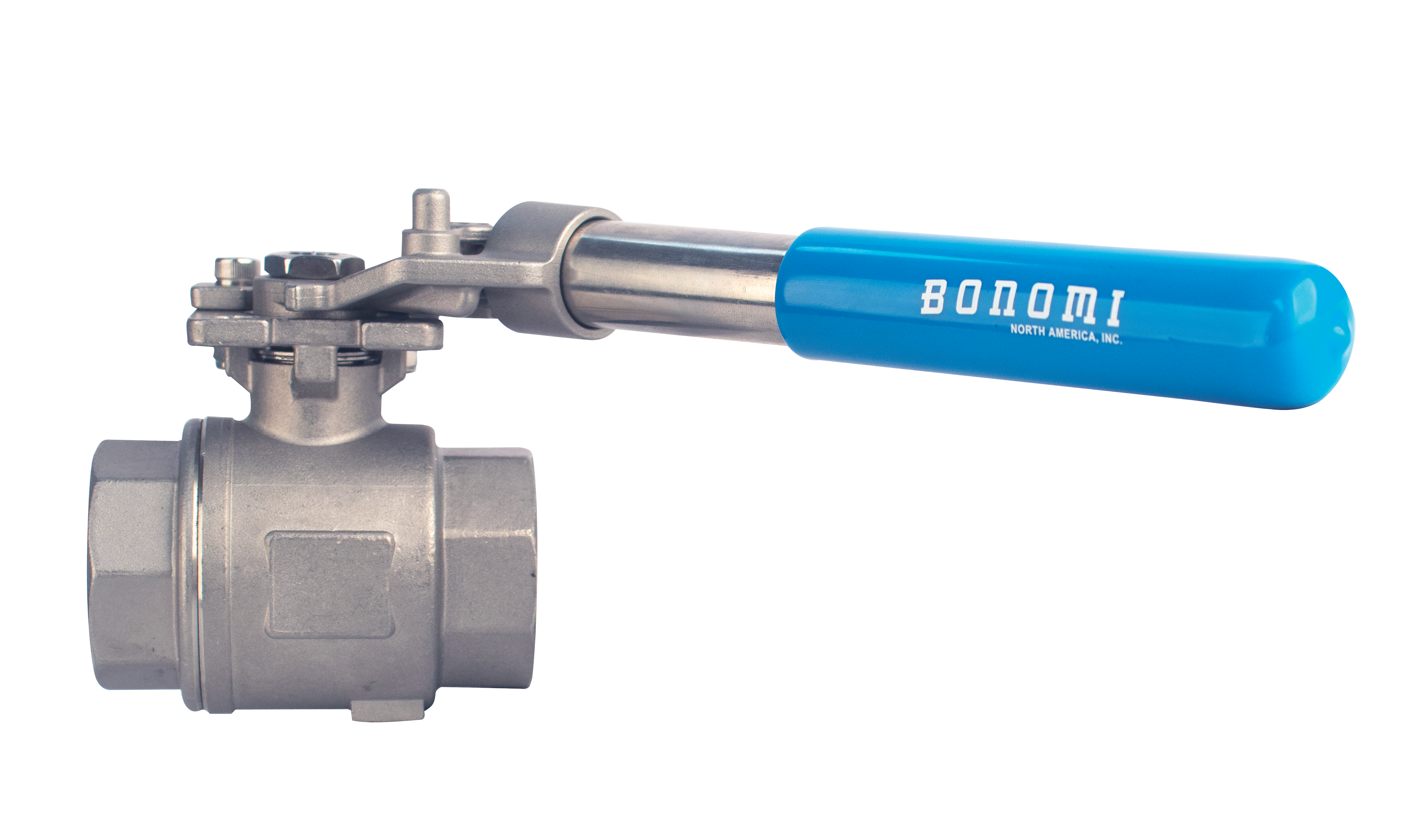

Deadman spring return lever, stainless steel, FNPT threaded ball valve, full port.
• Temperature range -40°F to +450°F.
• Working pressure 1000 psi (1/4" to 2") and 800 psi (2 1/2" to 4").
• Blow-out proof stem.
• Adjustable spring return lever.
• Antistatic design.
• ANSI B1.20.1 connections.
2200 SRL: size 1/4” to 4”.

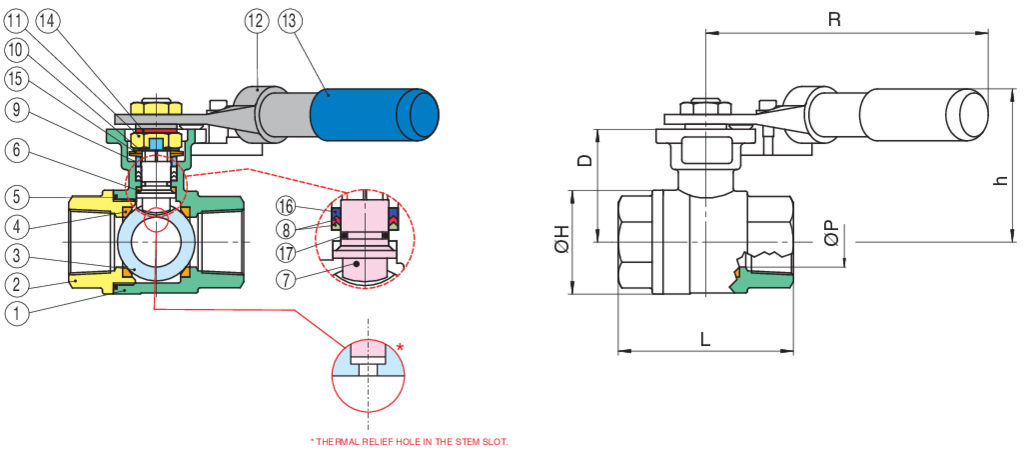

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | CF8M | 1 |
| 2 | END CAP | CF8M | 1 |
| 3 | BALL | AISI 316 | 1 |
| 4 | SEAT | PTFE | 2 |
| 5 | JOINT GASKET | PTFE | 1 |
| 6 | STEM SEAL | RTFE | 1 |
| 7 | STEM | AISI 316 | 1 |
| 8 | STEM PACKING | PTFE | 2 |
| 9 | GLAND | AISI 304 | 1 |
| 10 | LOCK SADDLE | AISI 304 | 1 |
| 11 | STEM NUT | AISI 304 | 2 |
| 12 | HANDLE | AISI 304 | 1 |
| 13 | HANDLE SLEEVE | VINYL | 1 |
| 14 | STEM WASHER | AISI 304 | 1 |
| 15 | BELLEVILLE WASHER | AISI 301 | 1 |
| 16 | STEM PACKING | 25% GLASS FIBER FILLED+PTFE | 1 |
| 17 | O-RING | VITON | 1 |
| SIZE | ØP | R | D | ØH | h | L | ISO 5211 | Cv | psi | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 0.45 | 6.30 | 1.52 | 1.46 | 2.31 | 2.56 | F03/F04 | 9 | 1000 | 1.80 |
| 3/8" | 0.49 | 6.30 | 1.52 | 1.46 | 2.31 | 2.56 | F03/F04 | 9 | 1000 | 1.80 |
| 1/2" | 0.59 | 6.30 | 1.52 | 1.46 | 2.31 | 2.56 | F03/F04 | 21 | 1000 | 1.70 |
| 3/4" | 0.79 | 6.30 | 1.82 | 1.69 | 2.60 | 2.94 | F03/F04 | 50 | 1000 | 2.00 |
| 1" | 0.98 | 6.30 | 2.23 | 2.05 | 3.02 | 3.47 | F04/F05 | 90 | 1000 | 2.80 |
| 1 1/4" | 1.26 | 6.30 | 2.40 | 2.48 | 3.19 | 4.02 | F04/F05 | 110 | 1000 | 3.80 |
| 1 1/2" | 1.50 | 8.27 | 3.05 | 2.87 | 3.84 | 4.33 | F05/F07 | 240 | 1000 | 6.60 |
| 2" | 1.97 | 8.27 | 3.35 | 3.54 | 4.14 | 4.92 | F05/F07 | 400 | 1000 | 8.80 |
| 2 1/2” | 2.50 | 19.90 | 3.68 | 4.69 | 6.67 | 6.53 | F07/F10 | 700 | 800 | 22.08 |
| 3” | 3.07 | 19.90 | 4.09 | 5.59 | 7.08 | 7.28 | F07/F10 | 980 | 800 | 34.96 |
| 4” | 3.90 | 19.90 | 5.20 | 6.91 | 8.19 | 8.62 | F10/F12 | 1700 | 800 | 43.22 |
