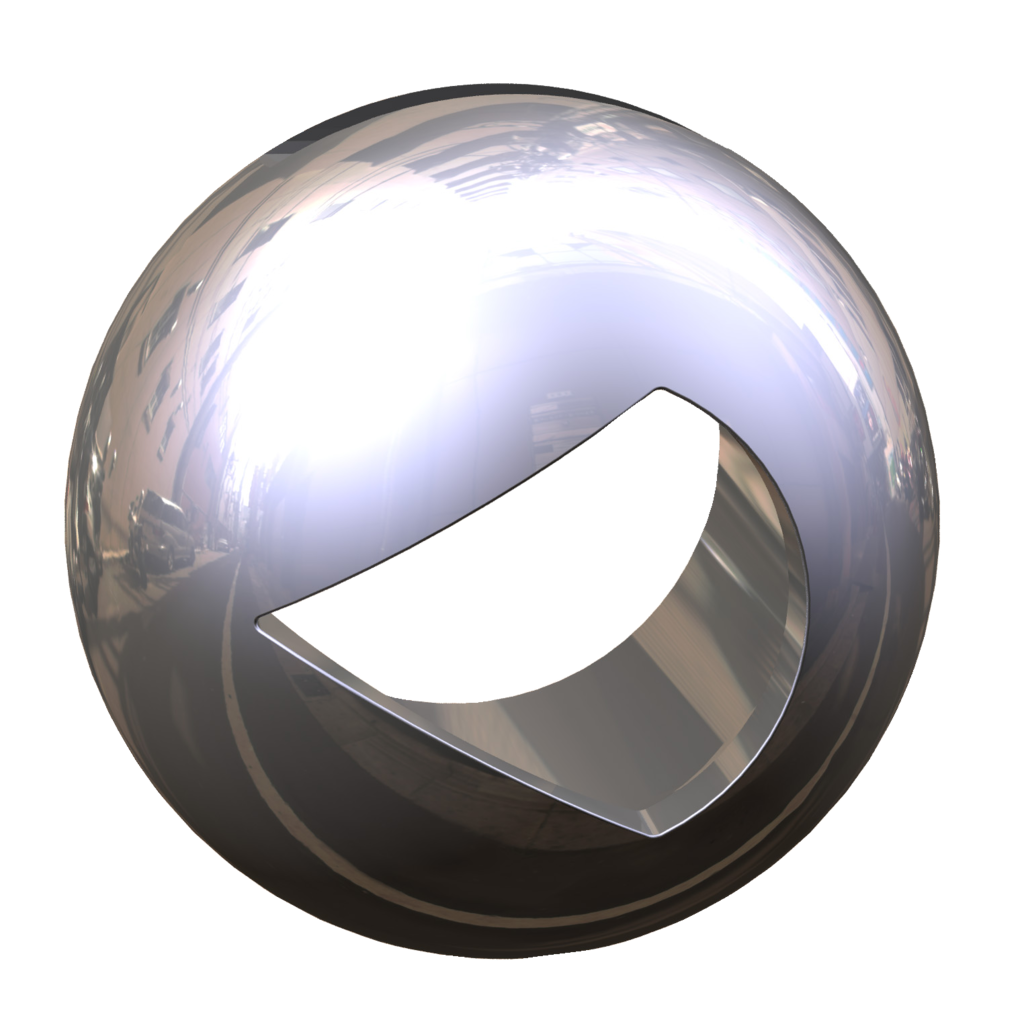

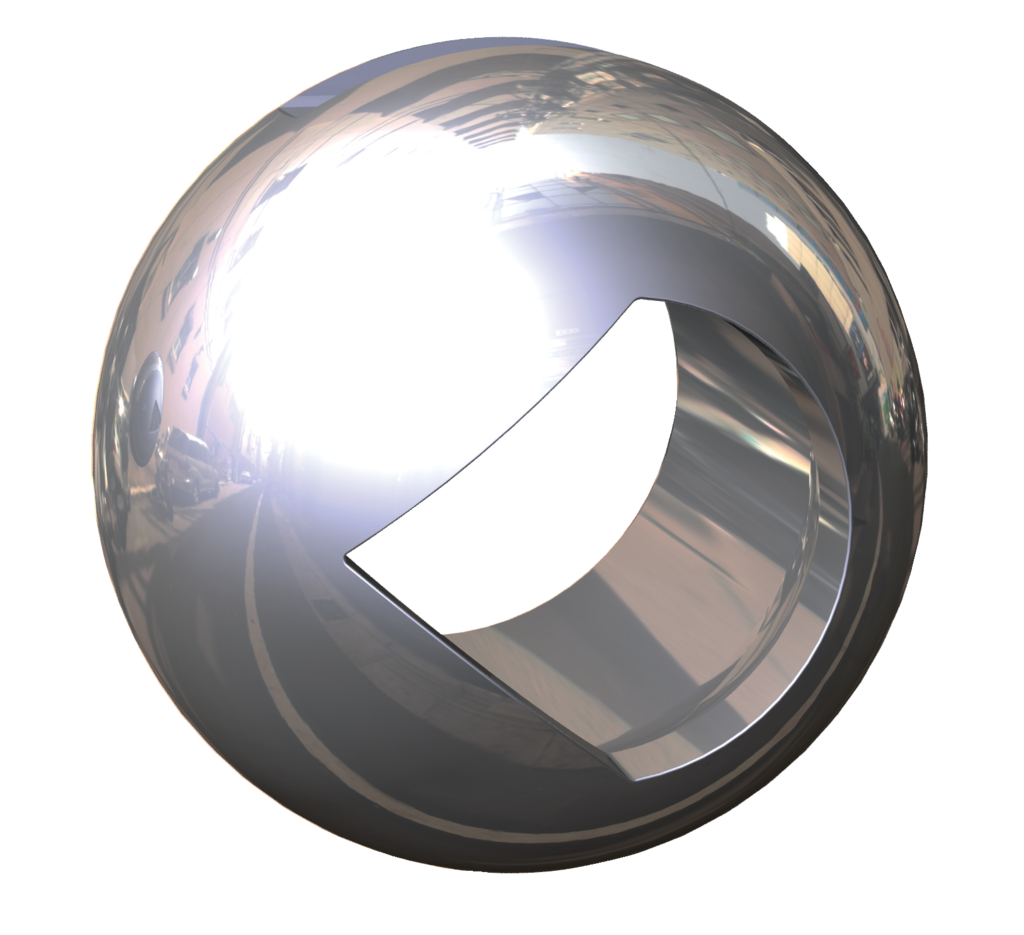

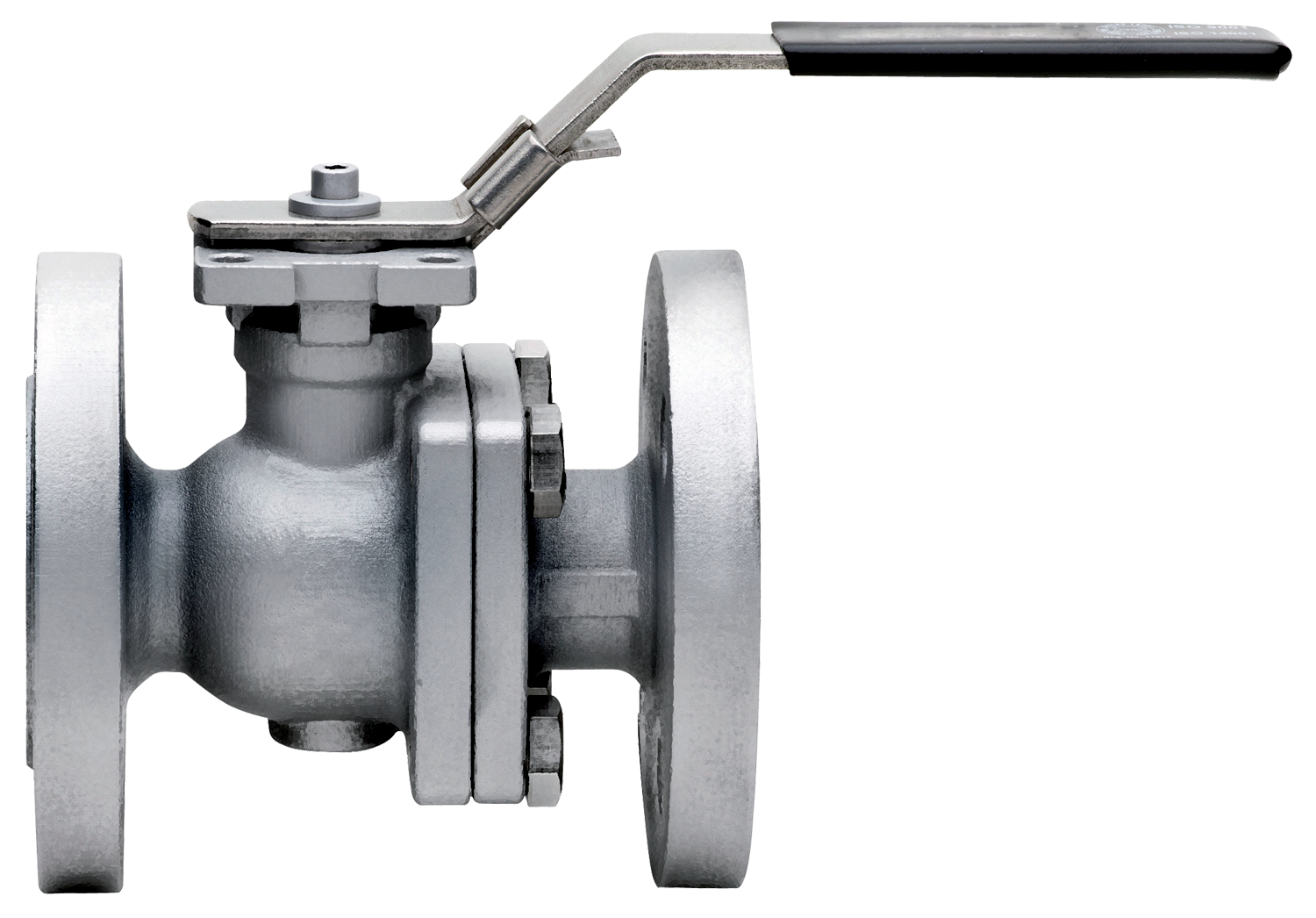

Stainless steel, ANSI class 150 flanged V-ball valve, 30, 60, 90 degrees V ports.
• Temperature range -18°F to 392°F.
• ISO 5211 mounting pad.
• Locking handle standard.
• ANSI 16.5, 16.10, and 16.34.
• Antistatic design.
• Blowout proof stem and carbon filled PTFE ball seats.
• Thermal relief hole in the ball.
• Direct mount ISO 5211.
• Latch locking handle.
VF300 - VF600 - VF900: size 1/2” to 6”.

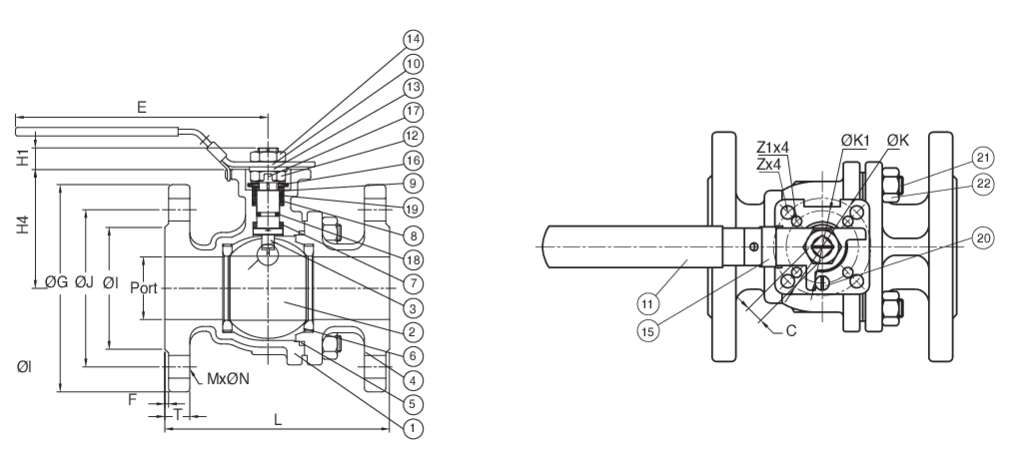

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | ASTM A351 GR. CF8M | 1 |
| 2 | BALL | ASTM A351 GR. CF8M | 1 |
| 3 | STEM | AISI 316 | 1 |
| 4 | END CAP | ASTM A351 GR. CF8M | 2 |
| 5 | BODY SEAL | PTFE | 1 |
| 6 | SEAT | CARBON GRAPHITE FILLED PTFE | 2 |
| 7 | THRUST WASHER | PTFE | 1 |
| 8 | STEM PACKING | PTFE | 1 |
| 9 | GLAND | AISI 304 | 1 |
| 10 | HANDLE | AISI 304 | 1 |
| 11 | HANDLE COVER | PLASTIC | 1 |
| 12 | STEM NUT | AISI 304 | 1 |
| 13 | HANDLE WASHER | AISI 304 | 1 |
| 14 | HANDLE NUT | AISI 304 | 1 |
| 15 | LOCKING PAD | AISI 304 | 1 |
| 16 | BELLEVILLE WASHER | AISI 304 | 2 |
| 17 | TAB WASHER | AISI 304 | 1 |
| 18 | O-RING | FKM (VITON) | 1 |
| 19 | PACKING FOLLOWER | PTFE +25% GF | 1 |
| 20 | STOP PIN | AISI 304 | 1 |
| 21 | BODY STUD | ASTM A193 GR.B8 | 4-8 |
| 22 | BOLT NUT | ASTM A194 GR.8 | 4-8 |
| SIZE | Port | L | E | H1 | H4 | C mm | ØG | ØJ | ØI | T | F | M | ØN | ISO 5211 | Z | Z1 | Break Torque in-Lbs | Weight Lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.59 | 4.25 | 4.41 | 0.33 | 1.89 | 9 | 3.5 | 2.38 | 1.38 | 0.44 | 0.06 | 4 | 0.63 | F05-F03 | 7.0 | 6.0 | 62 | 3.9 |
| 3/4" | 0.79 | 4.61 | 4.41 | 0.33 | 2.44 | 9 | 3.88 | 2.76 | 1.69 | 0.5 | 0.06 | 4 | 0.63 | F05-F03 | 7.0 | 6.0 | 106 | 4.9 |
| 1" | 0.98 | 5 | 5.35 | 0.37 | 2.52 | 9 | 4.25 | 3.12 | 2.01 | 0.56 | 0.06 | 4 | 0.63 | F05-F03 | 7.0 | 6.0 | 177 | 6.8 |
| 1 1/4" | 1.26 | 5.51 | 7.28 | 0.37 | 2.8 | 9 | 4.63 | 3.5 | 2.5 | 0.63 | 0.06 | 4 | 0.63 | F05-F03 | 7.0 | 6.0 | 224 | 9.2 |
| 1 1/2" | 1.5 | 6.5 | 7.8 | 0.55 | 2.99 | 14 | 5 | 3.88 | 2.88 | 0.69 | 0.06 | 4 | 0.63 | F07-F05 | 9.0 | 7.0 | 371 | 13.3 |
| 2" | 1.97 | 7.01 | 7.8 | 0.54 | 3.33 | 14 | 6 | 4.75 | 3.62 | 0.75 | 0.06 | 4 | 0.75 | F07-F05 | 9.0 | 7.0 | 486 | 19.2 |
| 2 1/2" | 2.52 | 7.48 | 10.34 | 0.71 | 4.2 | 17 | 7 | 5.5 | 4.12 | 0.92 | 0.06 | 4 | 0.75 | F10-F07 | 11.0 | 9.0 | 840 | 24.8 |
| 3" | 2.99 | 7.99 | 10.34 | 0.71 | 4.57 | 17 | 7.5 | 6 | 5 | 0.94 | 0.06 | 4 | 0.75 | F10-F07 | 11.0 | 9.0 | 1250 | 41 |
| 4" | 3.94 | 9.02 | 12.8 | 0.71 | 6.08 | 17 | 9 | 7.5 | 6.19 | 0.94 | 0.06 | 4 | 0.75 | F10-F07 | 11.0 | 9.0 | 1860 | 57 |
| 6" | 5.91 | 15.51 | 29.53 | 1.18 | 8.39 | 27 | 11 | 9.5 | 8.5 | 1 | 0.06 | 8 | 0.88 | F12 | 0.55 | n/a | 2310 | 168 |
