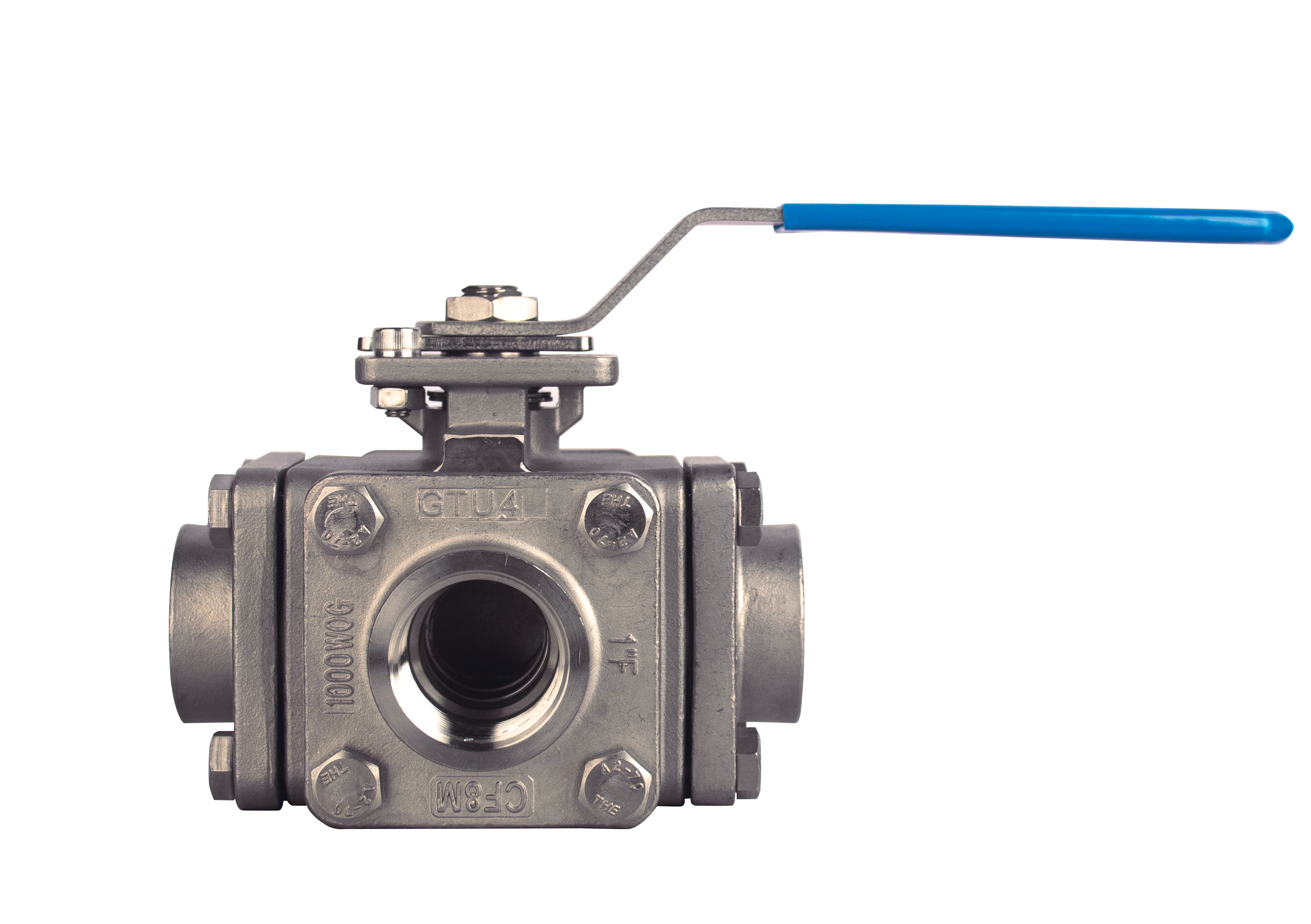

3-way direct mount stainless steel, block body, full port ball valve.
• 1000 PSI WOG.
• ISO 5211 mounting pad.
• Live load stem packing.
• Investment cast and sand cast body construction.
• Meets International standards.
• T, L, and double L port designs.
• Live loaded stem packing design.
97L - 97T - 97X: size 1/4” to 4”.

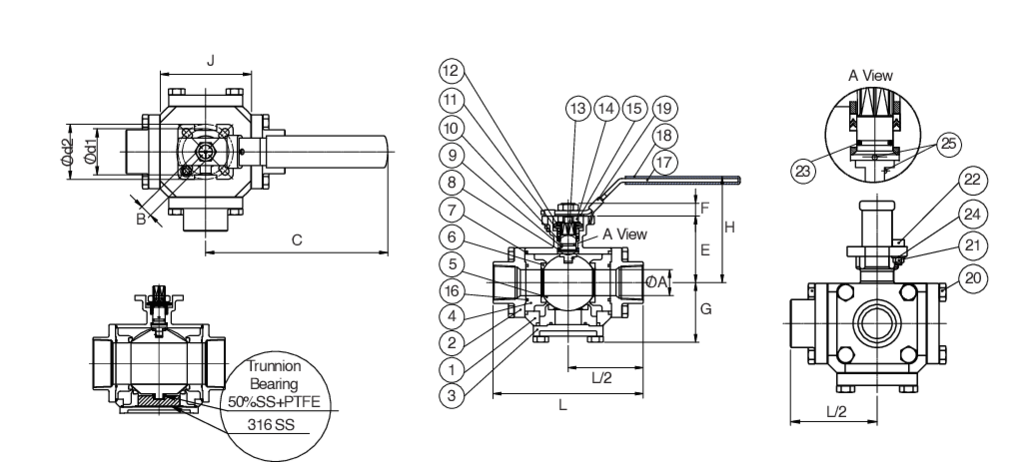

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | CF8M | 1 |
| 2 | END CAP A | CF8M | 4 |
| 3 | END CAP B | CF8M | 1 |
| 4 | SEAT RETAINER | CF8M | 5 |
| 5 | BALL | AISI 316 | 1 |
| 6 | SEAT | PTFE/R.T.F.E. | 5 |
| 7 | JOINT GASKET | PTFE | 5 |
| 8 | STEM SEAL | RPTFE | 1 |
| 9 | STEM | AISI 316 | 1 |
| 10 | STEM PACKING | 25% GLASS FILLED PTFE | 1 |
| 11 | GLAND | AISI 304 | 1 |
| 12 | BELLEVILLE WASHER | AISI 301 | 2 |
| 13 | LOCK SADDLE | AISI 304 | 1 |
| 14 | STEM NUT | AISI 304 | 2 |
| 15 | STEM WASHER | AISI 304 | 1 |
| 16 | RETAINER SEAL | PTFE | 5 |
| 17 | HANDLE | AISI 304 | 1 |
| 18 | HANDLE SLEEVE | VINYL | 1 |
| 19 | LOCKING DEVICE | AISI 304 | 1 |
| 20 | BOLT NUT | ASTM A194 8 | 20 |
| 21 | PIN NUT | AISI 304 | 1 |
| 22 | STOP PIN | AISI 304 | 1 |
| 23 | O-RING | FKM (VITON) | 2 |
| 24 | WASHER | AISI 304 | 1 |
| 25 | ANTISTATIC DEVICE | AISI 316 | 2 |
| SIZE | ØA | B mm | C | E | F | G | H | J | L | psi | Ød1 | Ød2 | ISO 5211 | Break Torque in. lbs. | Cv | Weight Lbs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 0.45 | 9 | 5.9 | 1.72 | 0.35 | 1.38 | 3.34 | 1.99 | 3.62 | 1000 | 1.41 | 1.65 | F03/F04/F05 | 71 | 4 | 1.4 |
| 3/8" | 0.49 | 9 | 5.9 | 1.72 | 0.35 | 1.38 | 3.34 | 1.99 | 3.62 | 1000 | 1.41 | 1.65 | F03/F04/F05 | 71 | 5 | 1.4 |
| 1/2" | 0.59 | 9 | 5.9 | 1.72 | 0.35 | 1.38 | 3.34 | 1.99 | 3.62 | 1000 | 1.41 | 1.65 | F03/F04/F05 | 71 | 6 | 1.3 |
| 3/4" | 0.78 | 11 | 6.49 | 2.13 | 0.41 | 1.78 | 3.66 | 2.63 | 4.33 | 1000 | 1.65 | 1.96 | F04/F05 | 151 | 16 | 2.8 |
| 1" | 0.98 | 11 | 7.08 | 2.52 | 0.41 | 2.23 | 4.25 | 3.26 | 5.66 | 1000 | 1.65 | 1.96 | F04/F05/F07 | 257 | 31 | 4.8 |
| 1 1/4" | 1.25 | 14 | 8.46 | 3.09 | 0.51 | 2.35 | 4.99 | 3.5 | 5.78 | 800 | 1.96 | 2.75 | F05/f07 | 310 | 32 | 5.9 |
| 1 1/2" | 1.49 | 17 | 10.35 | 3.73 | 0.7 | 2.84 | 5.98 | 4.29 | 6.45 | 800 | 2.75 | 4.01 | F07/F10 | 523 | 75 | 10.9 |
| 2" | 1.96 | 17 | 12.32 | 3.99 | 0.7 | 3.16 | 6.25 | 4.76 | 7.24 | 800 | 2.75 | 4.01 | F07/F10 | 638 | 140 | 13.8 |
| 2 1/2" | 2.55 | 17 | 13.54 | 4.72 | 0.7 | 3.81 | 6.96 | 5.74 | 8.97 | 600 | 2.75 | 4.01 | F07/F10 | 815 | 210 | 22.5 |
| 3" | 2.99 | 22 | 14.56 | 5.23 | 0.9 | 4.13 | 7.67 | 6.22 | 10.43 | 600 | 4.01 | 4.92 | F10/F12 | 1754 | 375 | 28.9 |
| 4" | 3.93 | 22 | 20.07 | 6.45 | 0.9 | 5.17 | 8.89 | 8.22 | 12.48 | 300 | 4.01 | 4.92 | F10/F12 | 2215 | 670 | 57.7 |
