Direct mount high performance 3-piece full port ball valves with locking lever.
• Class 900 sizes 1/4” to 2”, class 600 sizes 2 1/2”- 4”.
• Carbon steel 2220 psi, stainless steel 2160 psi (1/4” to 2”), carbon steel 1480 psi, stainless steel 1440 psi (2 1/2” to 4”).
• Working steam pressure to 250 psi.
• Temperature range: -50°F to +550°F.
• ISO 5211 mounting pad/square stem.
• TFM-4215 ball seats.
• Standard latch locking handle.
• Conforms to ANSI 16.34, ANSI B1.20.1 thread depths, NACE MR 0175.
• Fire Safe to API 607 1/4"-2" and Fire Safe design 2 1/2" - 4".
• Grounded ball and stem.
• Standard 316 stainless steel ball and stem in carbon steel models.
640LL (NPT) - 641LL (SW) - 642LL (BW): CARBON STEEL VALVE WITH PEEK SEATS - size 1/4” to 4”.
740LL (NPT) - 741LL (SW) - 742LL (BW): STAINLESS STEEL VALVE WITH PEEK SEATS - size 1/4” to 4”.
250 PSI STEAM
Available options: oval handle, stem extension or fugitive emissions bonnet.

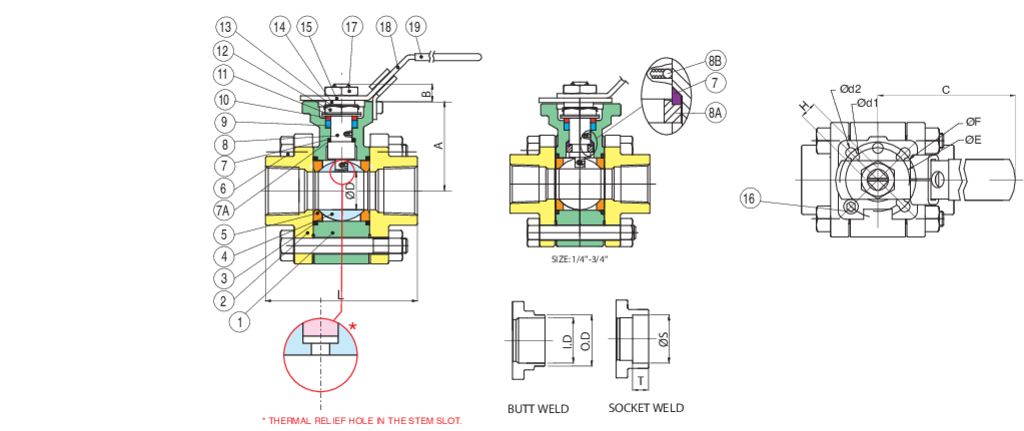

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | CF8M/WCB | 1 |
| 2 | END CAP | CF8M/WCB | 2 |
| 3 | GASKET (BODY) | TFM/GRAPHITE | 2 |
| 4 | BALL | AISI 316 | 1 |
| 5 | BALL SEATS | TFM 4215 | 2 |
| 6 | BOLTS | AISI 304 | * |
| 7 | THRUST WASHER | TFM | 1 |
| 7A | THRUST WASHER | PEEK | 1 |
| 8 | STEM | AISI 316 | 1 |
| 8A | HALF SPLIT RING | AISI 316 | 1 |
| 8B | ANTISTATIC | AISI 316 | 1 |
| 9 | STEM PACKING | TFM/GRAPHITE | 1 |
| 10 | GLAND WASHER | AISI 304 | 1 |
| 11 | DISK WASHER | AISI 301 | 1 |
| 12 | STEM NUT | AISI 304 | 1 |
| 13 | NUT STOP | AISI 304 | 1 |
| 14 | SPACE WASHER | AISI 304 | 1 |
| 15 | PLATER | AISI 304 | 1 |
| 16 | STOP IN | AISI 304 | 1 |
| 17 | HANDLE NUT | AISI 304 | 1 |
| 18 | HANDLE | AISI 304 | 1 |
| 19 | HANDLE COVER | PLASTISOL | 1 |
* Depending on size.
